Polcd 3.5 Inch Lcd Panel Module 320x480 Rgb Spi Interface Full Color Tft Lcm Display

Polcd 3.5 Inch Lcd Panel Module 320x480 Rgb Spi Interface Full Color Tft Lcm Display

3.5 inch lcd panel module

rgb spi interface lcd panel module

320x480 tft lcd screen module

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P035C018-TP

Contact Us

Request A Quote
Product Details
Size:
3.5 Inch
Resolution:
320x480
Brightness (cd/m²):
300
Interface:
MCU 8/16bit RGB 18bit SPI 3/4wire
Driver Ic:
ILI9488
Warranty:
2 Years
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Delivery Time
1-7 working days
Payment Terms
T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram
Supply Ability
40,000 PCS per day
Product Description

Leading display manufacturer announced the launch of its state-of-the-art 3.5'' TFT LCD, delivering superior color performance, clarity, and realism for an elevated visual experience. Boasting exceptional reflectivity and durability, the display provides high-quality images in various lighting conditions, both indoors and outdoors.


Parameter:

Model

P035C018-TP

Screen Size

3.5 inch

Number of Pixel

320RGB(H)x480(V)

Display area

48.96(H)x73.44(V)mm

Pixel pitch

0.153(H)x0.153(V)mm

Pin

50 pin

Outline Dimension

54.48x84.71x2.25mm

Pixel arrangement

RGB Vertical Stripe

Display mode

Normally  White

Viewing Direction(eye)

12 0'CLOCK

Display Color

262k

Luminance(cd/m2)

300 nit

Contrast Ratio

500:1

Interface

MCU 8/16bit  RGB 18bit  SPI 3/4wire

Back-light

LED Side-light type

Drive IC

ILI9488

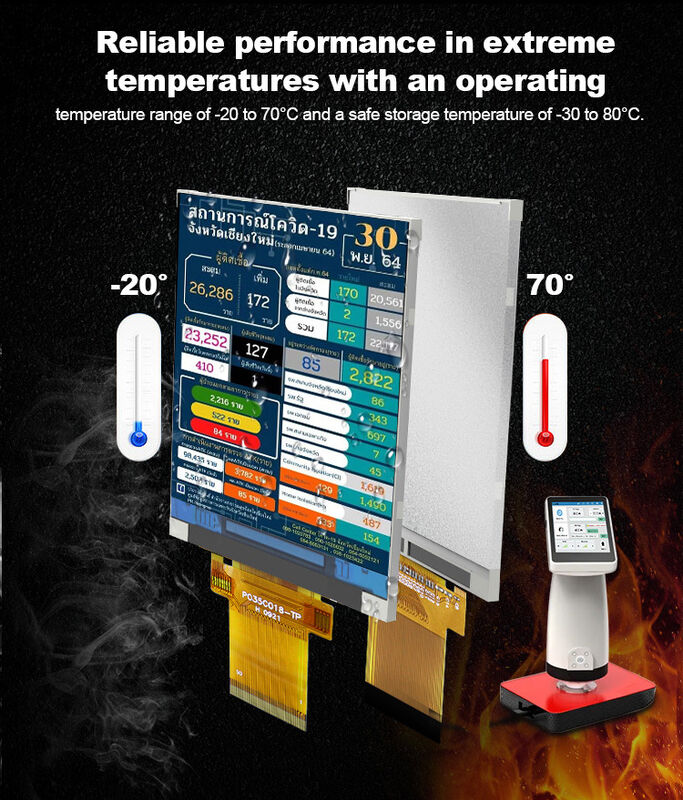

Operation Temperature

-20~70℃

Storage Temperature

-30~80℃


The 3.5-inch TFT LCD Module has a wide range of applications and can meet the needs of various industries and applications.
For example, it can be used in viewfinders and preview screens of digital cameras to help users take better photos and videos; screens of portable game consoles to provide high-definition gaming experience; displays of home appliances such as smart home control panels, TVs and audio systems etc.; wearable devices: display screens of smart watches, health monitors and other wearable devices, used to display time, health data; industrial control panels used to monitor and control production lines and equipment; display screens of medical devices, used to display Patient information, medical images, etc.


TFT LCD advantages in the medical industry

This 3.5-inch TFT LCD display with MCU, RGB, and SPI interface, featuring a 12 o'clock viewing angle, has many advantages in the medical industry. Its high-resolution display and vivid colors allow for clear visualization of medical images and data, while its fast display speed and quick response time enable real-time monitoring and analysis. The low power consumption of the display also helps to extend battery life in portable medical devices. Additionally, the display's compatibility with various image formats and display modes makes it adaptable to different medical equipment and applications. Overall, this display is a reliable and efficient solution for medical professionals who require high-quality visual displays.
