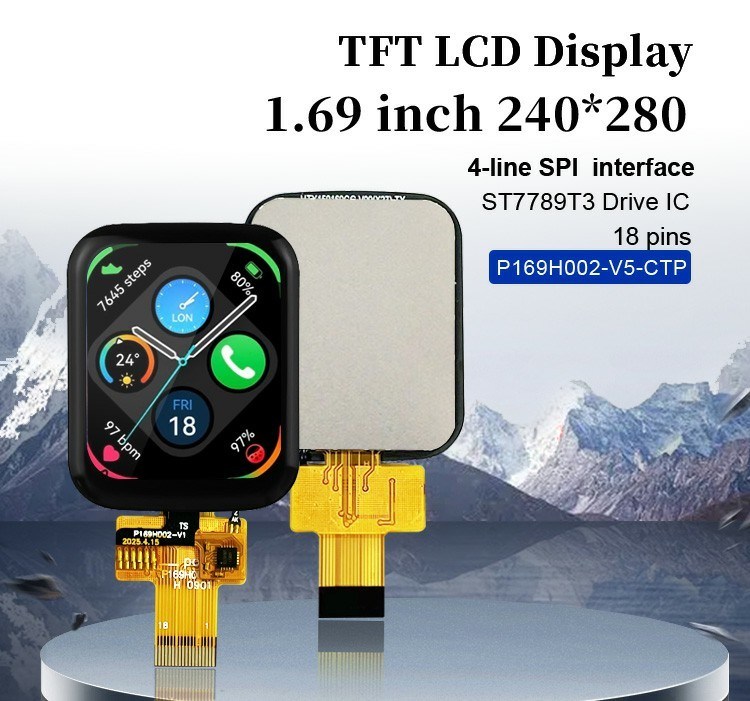

Polcd 1.69 Inch 240x280 TFT Display Module Square LCD Touch Screen For Smart Watch

Polcd 1.69 Inch 240x280 TFT Display Module Square LCD Touch Screen For Smart Watch

240x280 TFT Display Module

Smart Watch TFT Display Module

SPI Interface TFT Touch Screen

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P169H002-CTP

Contact Us

Request A Quote
Product Details
Size (inch):
1.69
Resolution:
240*280
Display Area:
27.97(H)x32.63(V)mm
Brightness (cd/m²):
300 Nit
Interface:
4 Line SPI
Driver Ic:
ST7789V
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Delivery Time
1-7 working days
Payment Terms
T/T, L/C, Credit card, PayPal, D/A, D/P, Western Union, MoneyGram
Supply Ability
25,000 PCS per day
Product Description

Product description:

1.69'' TFT LCD is a versatile display technology that offers high resolution, accurate color representation, low power consumption, and a compact size. It is a popular choice for use in wearable devices, industrial equipment, medical devices, and other applications where a small, high-quality display is required.

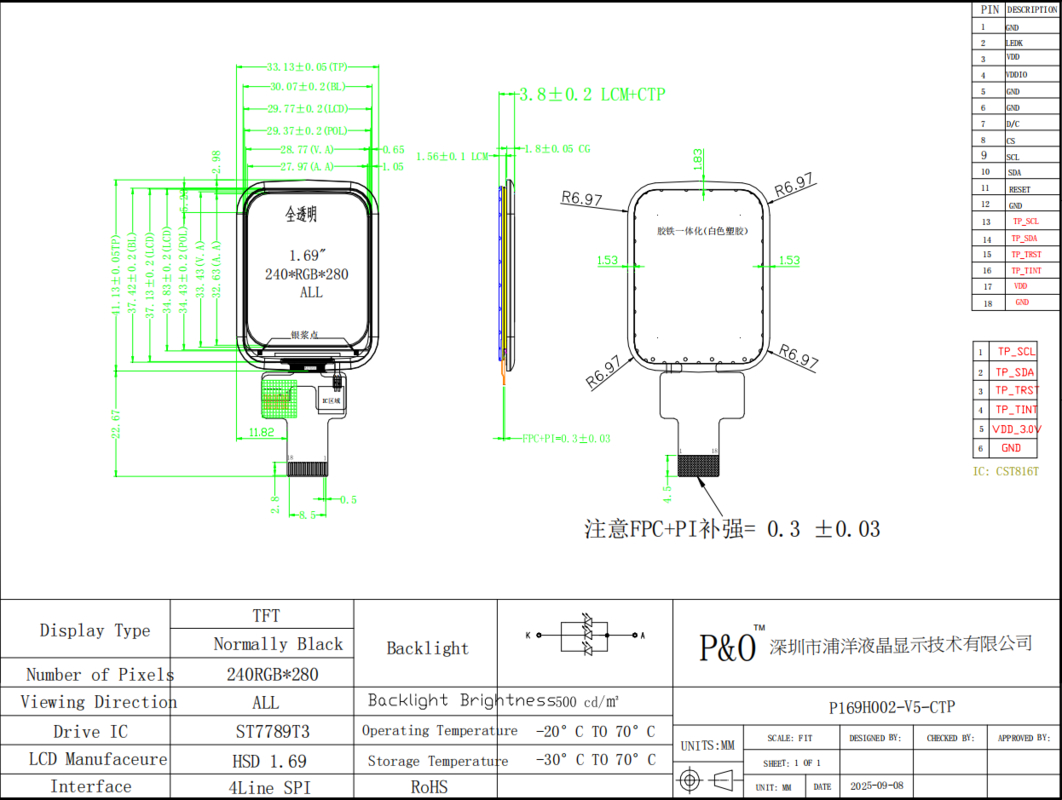

Parameter:

Model P169H002-CTP
Screen Size 1.69 inch
Number of Pixel 240RGB(H)x280(V)
Display area 27.97(H)x32.63(V)mm
Pixel pitch 0.11655(H)x0.11655(V)mm
Pins 18 Pins
Outline Dimension 33.13x41.13x3.61 mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction ALL
Display Color 262K
Luminance(cd/m2) 300 nit
Contrast Ratio 1000:1
Interface 4-line SPI
Back-light LED Side-light type
Drive IC ST7789V
Operation Temperature -20~70℃
Storage Temperature -30~80℃



Product Characteristics:

High resolution: The 1.69'' TFT LCD typically has a resolution of 240x280 pixels, which makes it capable of displaying high-quality images and text.

Color depth: It can display up to 65,000 colors, which allows for accurate color representation of images and videos.

Low power consumption: The TFT LCD technology used in the 1.69'' screen typically has low power consumption, which is important for devices that run on battery power, such as smartwatches and other wearables.

Wide viewing angle: The 1.69'' TFT LCD typically has a wide viewing angle, which means that the screen can be viewed clearly from different angles without distortion or color shifting.

Compact size: The 1.69'' TFT LCD is a small display screen, making it well-suited for use in wearable devices like smartwatches and fitness trackers.

Backlight: The 1.69'' TFT LCD is often designed with a backlight to improve visibility in low-light conditions, making it suitable for use in various lighting environments.

Polcd 1.69 Inch 240x280 TFT Display Module Square LCD Touch Screen For Smart Watch 0Polcd 1.69 Inch 240x280 TFT Display Module Square LCD Touch Screen For Smart Watch 1
