SPI Interface 240x320 Touch Display IPS 2.8 Inch Tft Lcd Module Polcd Screen

SPI Interface 240x320 Touch Display IPS 2.8 Inch Tft Lcd Module Polcd Screen

240x320 Tft Lcd Module

Tft Lcd Module 2.8 Inch

SPI Interface Small TFT Display

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P028B123-10-IPS

Contact Us

Request A Quote
Product Details
Number Of Pixel:
240RGB(H)x320(V)
Screen Size:
2.8 Inch
Display Area:
43.20(H)x57.60(V)
Brightness (cd/m²):
300
Interface:
SPI / MCU / RGB
Driver Ic:
ST7789V
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
Sample packing box 20*18*13cm
Delivery Time
5-8 working days
Payment Terms
T/T, L/C, Credit card, PayPal
Supply Ability
500,000 piece per week
Product Description

Polcd LCD Screen 2.8'' SPI Interface 240x320 Touch Display IPS 2.8 Inch Tft Lcd Module





Item Specification Unit
Screen Size 2.8 inch

Diagonal

Number of Pixel 240RGB(H)x320(V) Pixels
Display area 43.20(H)x57.60(V) mm
Pixel pitch 0.180(H)x0.180(V) mm

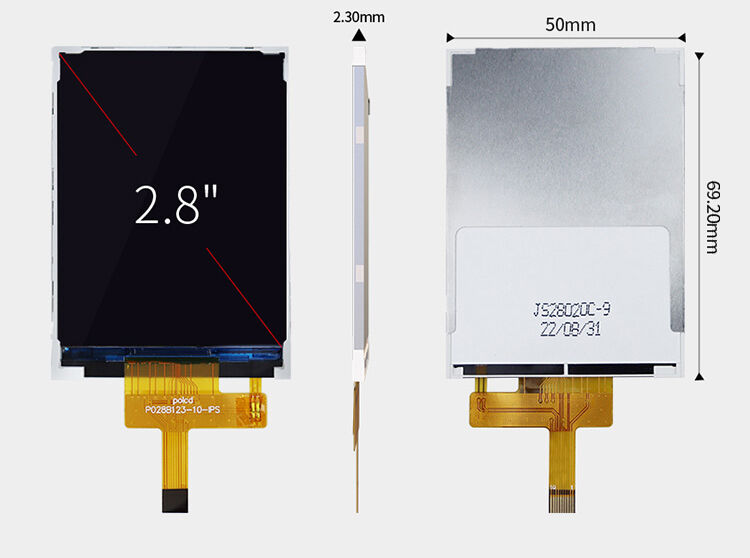

Outline Dimension 50.00x69.20x2.30 mm
Pixel arrangement RGB Vertical Stripe --
Display mode Normally Black --
Viewing Direction(eye) ALL --
Gray inversion direction --
Display Color 262K --
Luminance(cd/m2) 300 nit
Contrast Ratio 1200:1 --
Surface treatment -- --
Interface 4wire SPI
Back-light LED Side-light type --
Drive IC ST7789V
Operation Temperature -20~70
Storage Temperature -30~80
Weight -- g



SPI Interface 240x320 Touch Display IPS 2.8 Inch Tft Lcd Module Polcd Screen 0SPI Interface 240x320 Touch Display IPS 2.8 Inch Tft Lcd Module Polcd Screen 1

SPI Interface 240x320 Touch Display IPS 2.8 Inch Tft Lcd Module Polcd Screen 2
