Place of Origin:
Shenzhen, China
Brand Name:
Polcd
Certification:
RoHS, ISO9001
Model Number:
T10150UX-V01
Contact Us
Video
Video

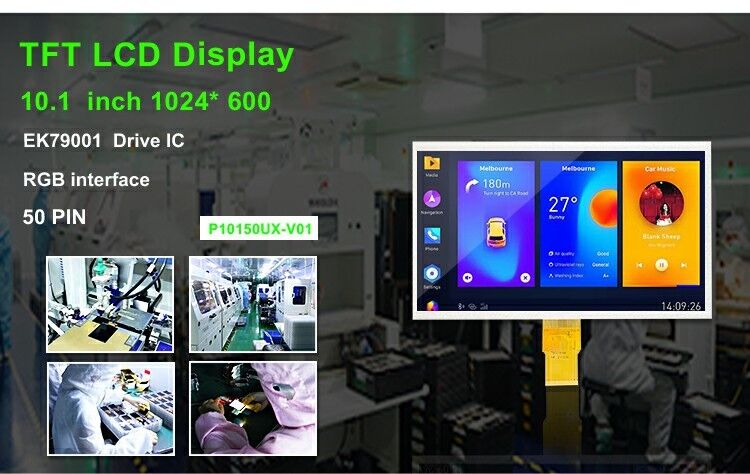

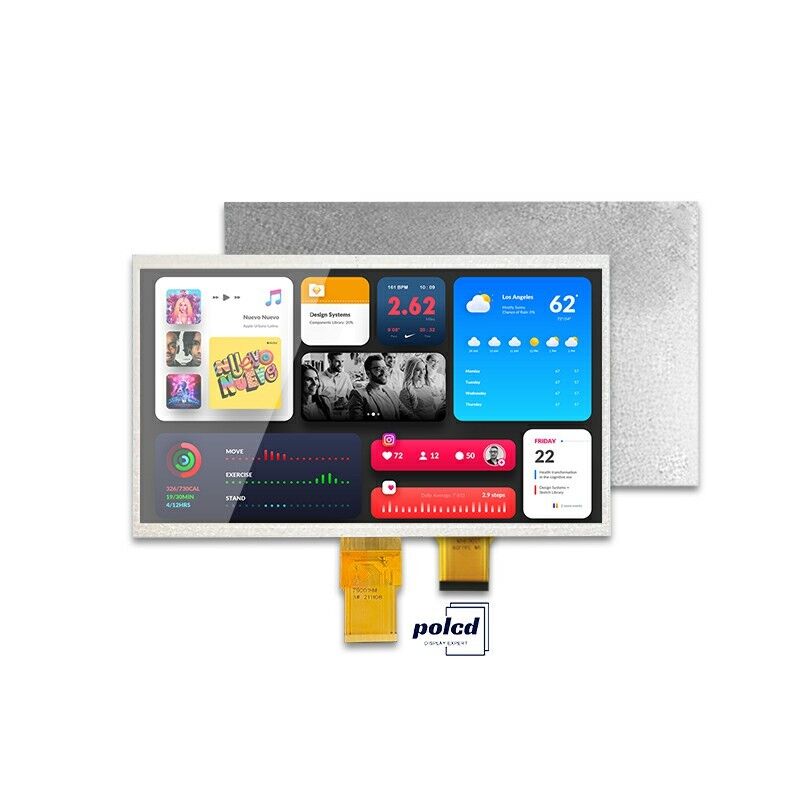

New published TFT LCD Module for commercial and industrial use. Screen size is 10.1 inch. A very common and hot selling size for small size TFT display. Improve your product design by adding our 1024 * 600 resolution product. 750 nits allow this lcd to work well indoors.
| P/N | T10150UX-V01 |

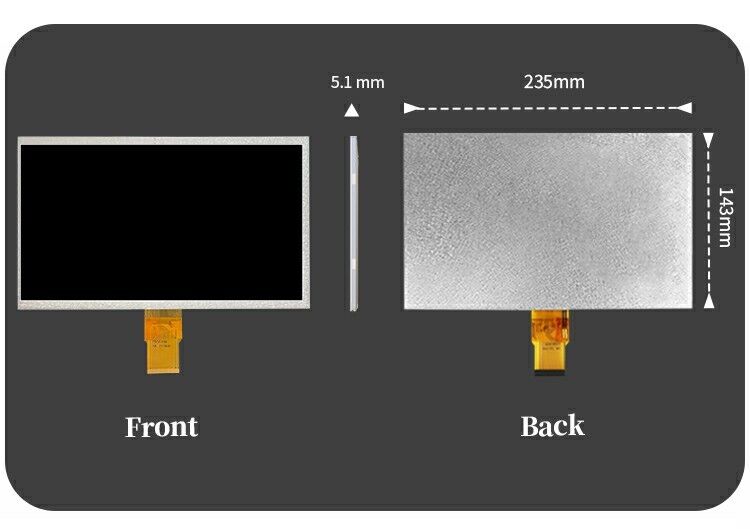

| Size(inch) | 10.1 |
| Resolution | 1024*600 |
| Brightness(cd/m²) | 750 |
| Interface | RGB 24bit |
| Driver Ic | EK79001 |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 50 |
The Interface of this LCD is RGB 24bit. We can also customize other types of interfaces and FPCs for you. EK79001 is the driver IC of the tft lcd. THE lowest operating temperature can reach -20°C (-4°F) and highest is 70°C (158°F).
Q: Is there a Touch Panel (Touch Screen) on the display?
A: We can offer you the RTP (Resistive Touch Panel) and CTP (Capacitive Touch Panel) if you need.
Q: Can I pay the order with credit cards or PayPal?
A: We accept PayPal and credit card for sample, T/T paid for mass order. We also accept advanced percentage (usually 30% before producing) for large orders.
Q: What is your delivery method?
A: EXW Shenzhen by DHL/ UPS/ FedEx/ TNT and any other method you want. Or ship the goods to your forwarder in China mainland and Hong Kong.
Q: What if the goods get lost/ damaged on the way?
A: We strongly suggest to buy insurance in case of any problem. We will discuss these details with you before order.
