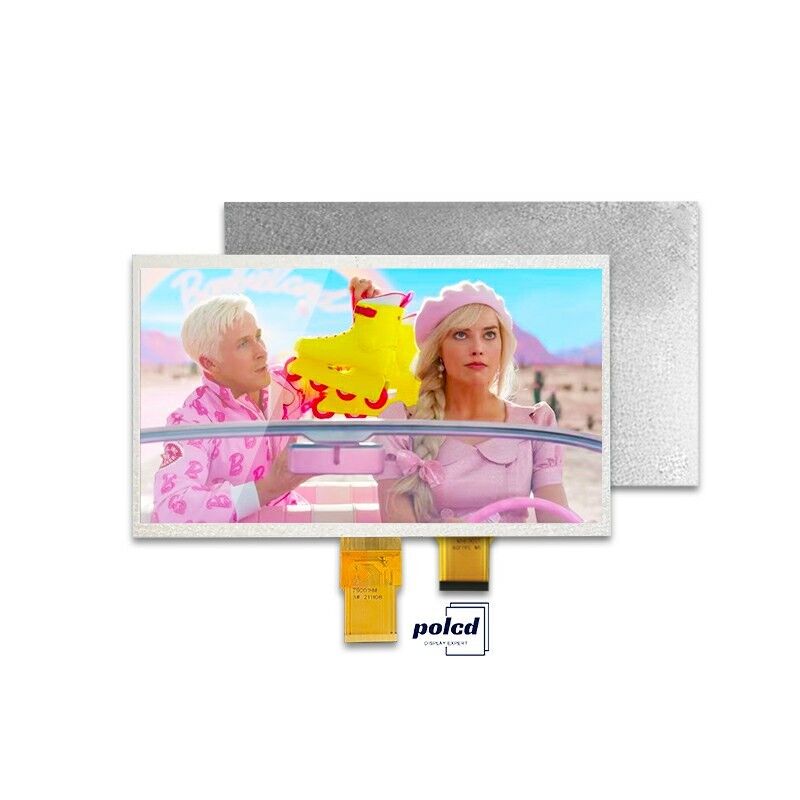

Name: Polcd Resolution 1024X600 10.1 Inch Lcd Display EK79001 Tft Display Module 750 Nit
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P10150UX-V01
Availability: InStock

Home > Products > TFT LCD Module >

Polcd Resolution 1024X600 10.1 Inch Lcd Display EK79001 Tft Display Module 750 Nit

1024X600 10.1 Inch Lcd Display 750

10.1 Inch Lcd Display EK79001

EK79001 Tft Display Module

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P10150UX-V01

Request A Quote

Product Details

Size:

10.1 Inch

Resolution:

1024*600

Interface:

RGB 24bit

Driver Ic:

EK79001

Viewing Direction(eye):

6 O'clock

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

1-7 working days

Payment Terms

T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram

Supply Ability

40,000 PCS per day

Polcd Custom LCD 5.0 inch TFT Panel IPS LCD Screen 400nit 720x1280 LCM Display Module

Get Best Price

Video

Polcd 5 inch TFT Module 720x1280 High Resolution Mipi IPS All Viewing Angle LCD Screen Display

Get Best Price

Video

Polcd 5 inch TFT Module Vertical Screen 720x1280 Mipi interface ST7703 IPS LCD Screen Display

Get Best Price

Video

Polcd 2.1 Inch 480x480 IPS round TFT Color Display LCD Module with MIPI Interface for LCM and Panel

Get Best Price

00-86-13714394335

anna@polcd.com

86-755-21011746

Contact Now

Product Description

Description:

A 10.1-inch TFT LCD is a high-quality display screen commonly used in tablets, laptops, and monitors. It offers vibrant colors and a clear viewing experience with a compact size that is ideal for portable devices.

Parameter:

Model	P10150UX-V01
Screen Size	10.1 inch
Number of Pixel	1024RGB(H)x600(V)
Pin	50 pin
Display area	222.72(H)x125.28(V) mm
Pixel pitch	0.0641(H)x0.1784(V) mm
Outline Dimension	235.00x143.00x6.55 mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally White
Viewing Direction(eye)	6 o'clock
Display Color	262k
Luminance(cd/m2)	260 nit
Contrast Ratio	500:1
Interface	RGB 24bit
Back-light	LED Side-light type
Drive IC	EK79001
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

Features:

10.1-inch TFT LCD is a popular display technology that offers several features and is used in a variety of applications. Some of its key features include high resolution, vibrant colors, and a clear and sharp visual display. It is energy-efficient and durable, making it ideal for use in portable devices such as tablets and laptops.

The applications of 10.1-inch TFT LCD are extensive, ranging from consumer electronics to industrial and medical equipment. It is commonly used in tablets, laptops, and monitors, providing a high-quality visual experience for users. In addition, it is used in digital cameras, gaming devices, and portable media players.

In the industrial sector, 10.1-inch TFT LCD is used in various types of machinery and equipment, including control panels, data loggers, and measurement instruments. It is also used in medical equipment such as ultrasound machines, patient monitors, and medical imaging displays.
