Polcd 350 Nit Small TFT Display ILI9341V 3.2 Spi Tft Display P032H005

Polcd 350 Nit Small TFT Display ILI9341V 3.2 Spi Tft Display P032H005

Small TFT Display ILI9341V

350 Nit Small TFT Display

ILI9341V 3.2 Spi Tft Display

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P032H005

Contact Us

Request A Quote
Product Details
P/N:
P032H005
Size (inch):
3.2
Resolution:
240*320
Brightness (cd/m²):
350
Interface:
8080 MCU 16bit
Driver Ic:
ILI9341V
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
20 cm * 30 cm * 40 cm
Delivery Time
5-8 working days
Payment Terms
T/T, L/C, Credit card, PayPal
Supply Ability
500,000 piece per week
Product Description

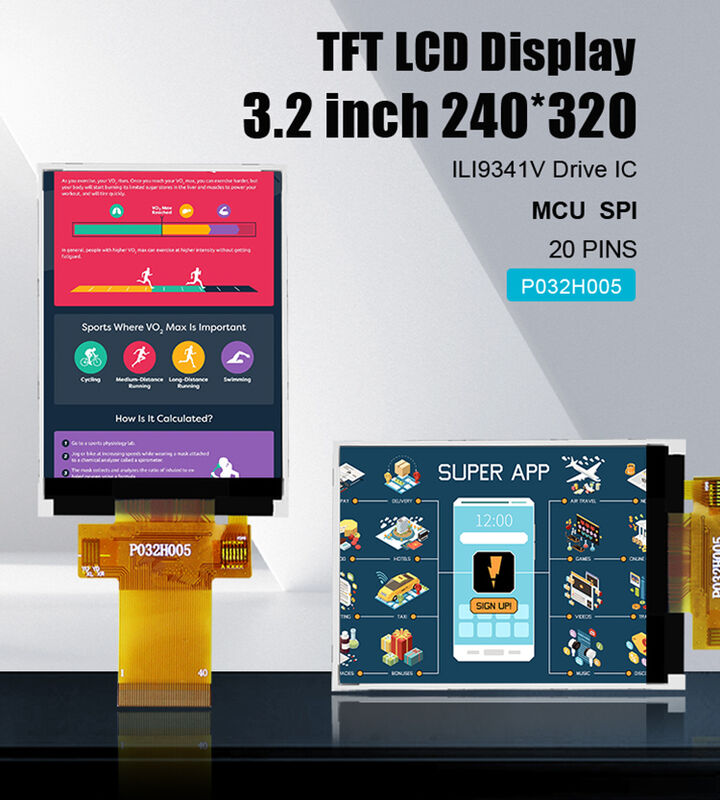

What can we expect from this one? Before this question it is better to know some information about this Industrial Touch Screen. Screen size is 3.2 inch. A very common and hot selling size for small size TFT display. The TFT LCD offers a physical resolution of 240 * 320, clear enough for most scenes to be used. 350 nits allow this lcd to work well indoors.



P/N P032H005
Size(inch) 3.2
Resolution 240*320
Brightness(cd/m²) 350
Interface 8080 MCU 16bit
Driver Ic ILI9341V
Operation Temperature(°C) -20~70
Pin Number 40

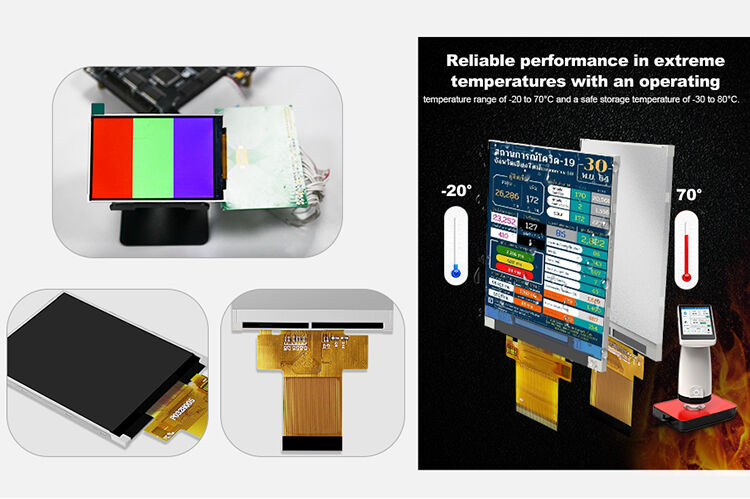

Supported by 8080 MCU 16bit, this type of TFT LCD can be used in many applications. ILI9341V is the driver IC of the tft lcd. The operation temperature is -20°C to 70°C and the storage temperature is -30°C to 80°C which compliant with industry standards.



Polcd 350 Nit Small TFT Display  ILI9341V 3.2 Spi Tft Display P032H005 0




Q: Is there a Touch Panel (Touch Screen) on the display?
A: We can offer you the RTP (Resistive Touch Panel) and CTP (Capacitive Touch Panel) if you need.

Q: Where can I get the datasheet, initialization code, product drawings, test reports and other technical files?
A: Please contact our sales and we will provide any files if you need.

Q: What is your delivery method?
A: EXW Shenzhen by DHL/ UPS/ FedEx/ TNT and any other method you want. Or ship the goods to your forwarder in China mainland and Hong Kong.

Q: What kind of packaging? Will the transport process be damaged?
A: Packed in anti-static bags with foam box to ensure safety in transportation.
