Place of Origin:
Shenzhen, China
Brand Name:
Polcd
Certification:
RoHS, ISO9001
Model Number:
P028H025-V2
Contact Us
Video
Video

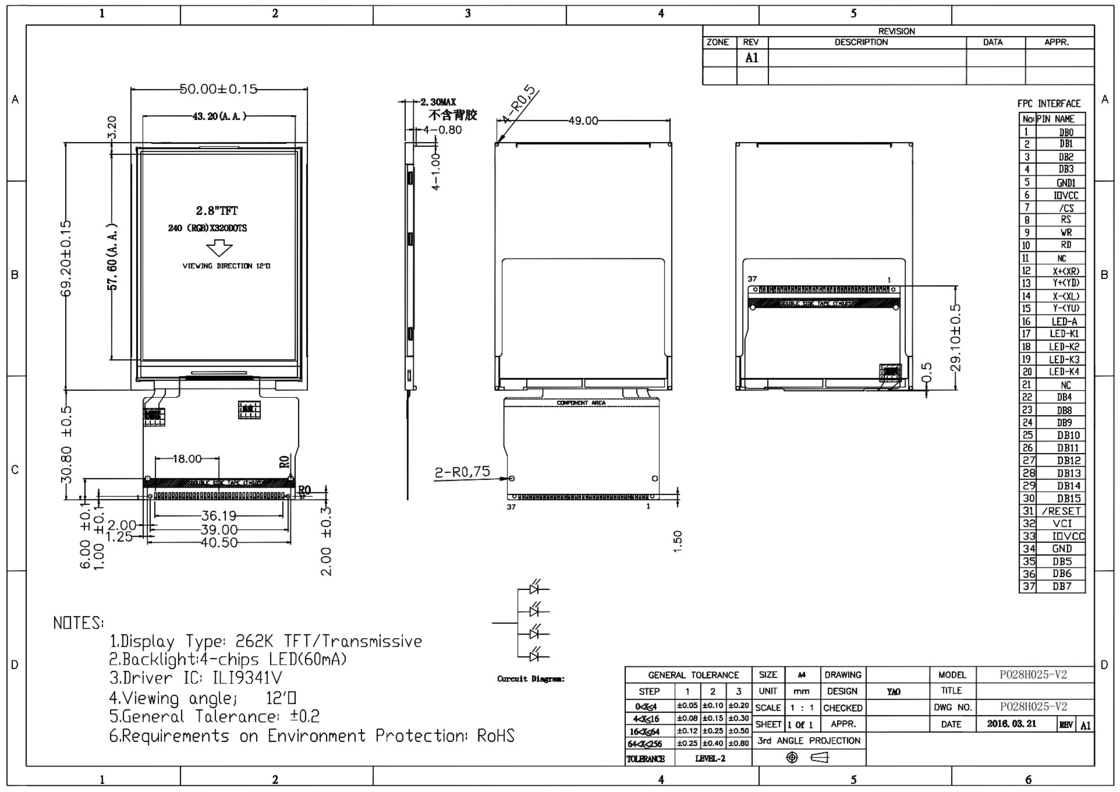

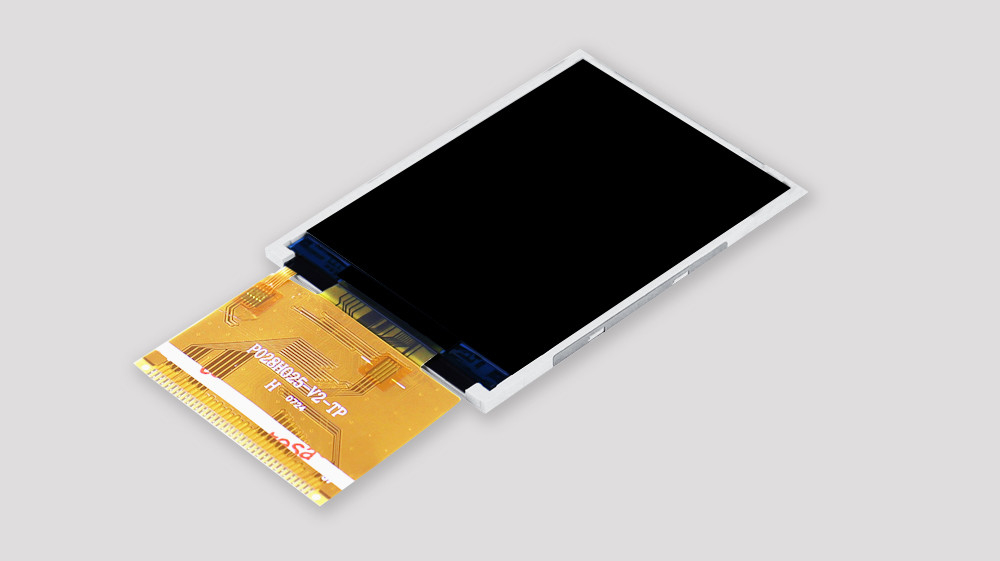

What can we expect from this one? Before this question it is better to know some information about this LCD Touch Panel. Screen size is 2.8 inch. A very common and hot selling size for small size TFT display. The TFT LCD offers a physical resolution of 240 * 320, clear enough for most scenes to be used. 300 nits allow this lcd to work well indoors.
| P/N | P028H025-V2 |

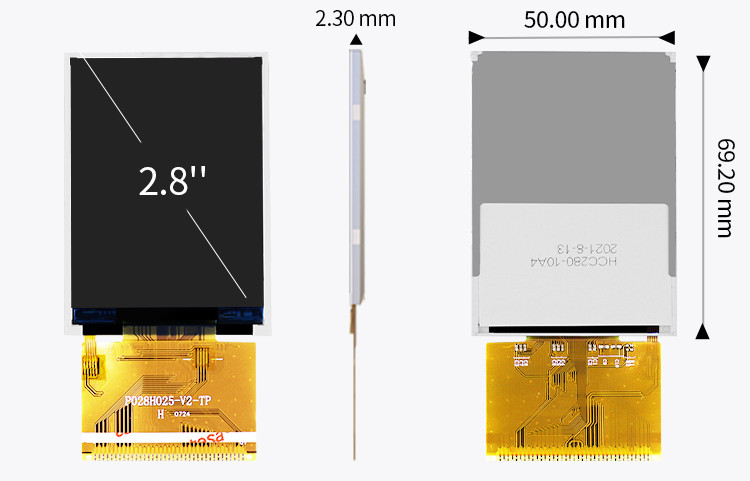

| Size(inch) | 2.8 |
| Resolution | 240*320 |
| Brightness(cd/m²) | 300 |
| Interface | 8080 MCU 16bit |
| Driver Ic | ILI9341V |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 37 |
Supported by 8080 MCU 16bit, this type of TFT LCD can be used in many applications. ILI9341V is the driver IC of the tft lcd.The operation temperature is -20°C to 70°C and the storage temperature is -30°C to 80°C which compliant with industry standards.
Q: I cannot find the size, the interface or the FPC I need, is it possible for customization?
A: Of course you can customize. Just tell us what you need. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.
Q: What about payment terms?
A: PayPal and credit card can be accepted for sample, T/T paid for mass order. Advance payment percentage can be discussed.
Q: How long can I get the goods?
A: It depends on the quantity. Our inventory is mainly raw materials, semi-finished and a small number of finished products. Samples available in stock will be sent in 3 days; Small batch delivery takes 15-20 working days include producing; Large batch delivery takes 20-30 working days. We will list the time cost for you before order.
Q: Can I trust the quality? We want good quality first.
A: Our company has a professional Quality Control Department, and all products are 100% inspected prior to ship. We welcome all the customers from the wolrd visiting our factory for checking any time.
