Place of Origin:
Shenzhen, China
Brand Name:
Polcd
Certification:
RoHS, ISO9001
Model Number:
P024C115
Contact Us
Video

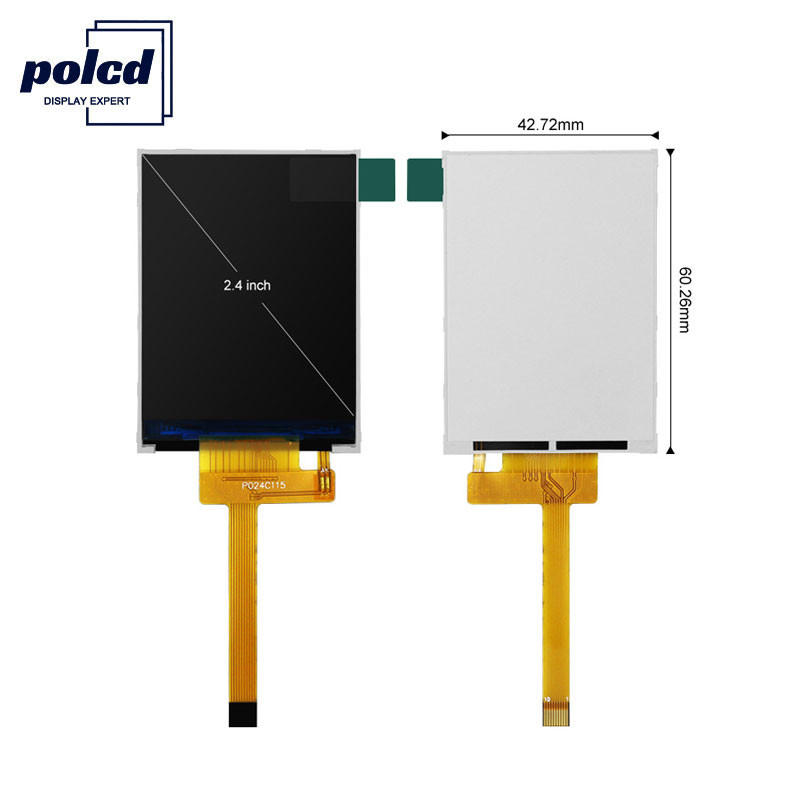

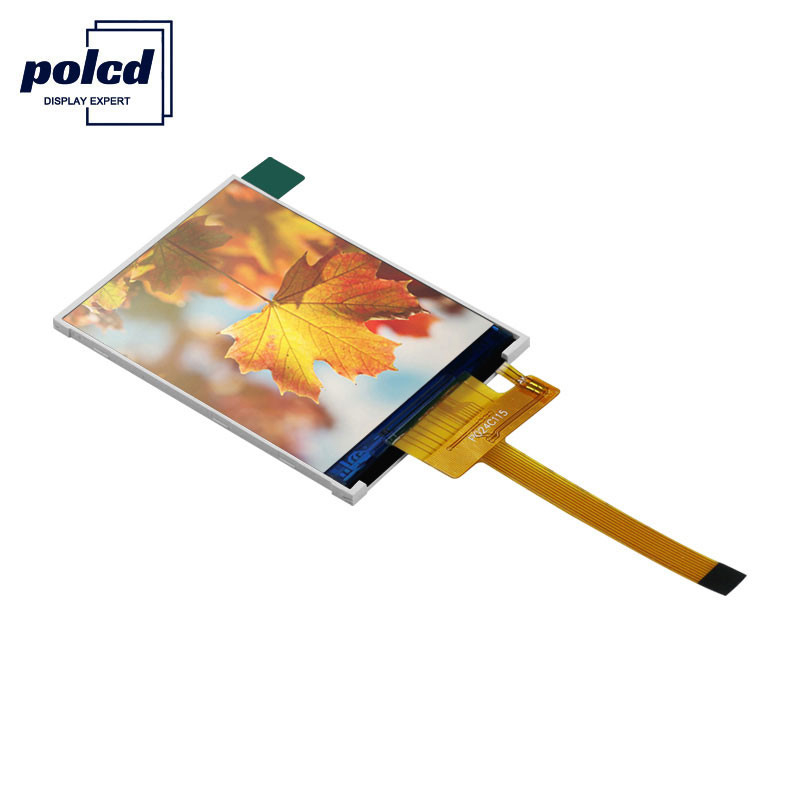

What can we expect from this one? Before this question it is better to know some information about this HD TFT Display. Screen size is 2.4 inch. A very common and hot selling size for small size TFT display. The TFT LCD offers a physical resolution of 240 * 320, clear enough for most scenes to be used. 260 nits allow this lcd to work well indoors.
| P/N | P024C115 |
| Size(inch) | 2.4 |
| Resolution | 240*320 |
| Brightness(cd/m²) | 260 |
| Interface | 4 Wire SPI |
| Driver Ic | ST7789V3 |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 10 |
Supported by 4 Wire SPI, this type of TFT LCD can be used in many applications. ST7789V3 is the driver IC of the tft lcd. The operation temperature is -20°C to 70°C and the storage temperature is -30°C to 80°C which compliant with industry standards.
Q: I cannot find the size, the interface or the FPC I need, is it possible for customization?
A: Of course you can customize. Just tell us what you need. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.
Q: I want make sure some information before order, where should I find the files or datasheet?
A: The easiest way is contact our sales then we will provide any files if you need quickly.
Q: How long can I get the goods?
A: It depends on the quantity. Our inventory is mainly raw materials, semi-finished and a small number of finished products. Samples available in stock will be sent in 3 days; Small batch delivery takes 15-20 working days include producing; Large batch delivery takes 20-30 working days. We will list the time cost for you before order.
Q: What kind of packaging? Will the transport process be damaged?
A: Packed in anti-static bags with foam box to ensure safety in transportation.
