Name: Polcd 12 O'CLOCK 3.2 Inch TFT Display ILI9341V TFT LCD Module 240x320
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P032H005
Availability: InStock

Home > Products > TFT LCD Module >

Polcd 12 O'CLOCK 3.2 Inch TFT Display ILI9341V TFT LCD Module 240x320

12 0'CLOCK 3.2 Inch Tft Lcd

3.2 inch tft ILI9341V

ILI9341V TFT LCD Module 240X320

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P032H005

Request A Quote

Product Details

Size (inch):

3.2

Resolution:

240*320

Brightness (cd/m²):

350

Interface:

8080 MCU 16bit

Driver Ic:

ILI9341V

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Please contact us for latest price

Packaging Details

FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Delivery Time

1-7 working days

Payment Terms

T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram

Supply Ability

40,000 PCS per day

Polcd ILI9488 Display Tft Lcd 12 0'CLOCK 3.5 Tft Lcd Raspberry Pi 48.96mm

Get Best Price

Video

Polcd 12 O'CLOCK 3.2 Inch TFT Display ILI9341V TFT LCD Module 240x320

Get Best Price

Video

Polcd 350nit 3.2 Inch Raspberry Pi Display ILI9341V Sunlight Readable Lcd Display

Get Best Price

Video

Polcd Custom 2.4 Inch 20 Pin Tft Lcd 240x320 Transflective Color Screen with ST7789T3 Lcd Display

Get Best Price

00-86-13714394335

anna@polcd.com

86-755-21011746

Contact Now

Product Description

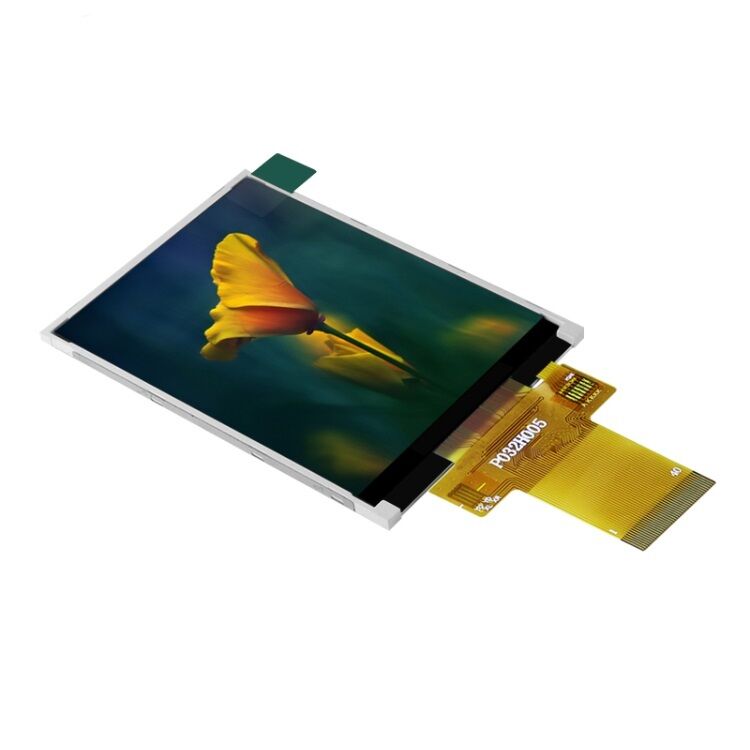

This colour active matrix thin film transistor liquid crystal display uses an amorphous silicon TFT as a switching device. This model is composed of a TFT panel, a driving circuit and a back light system. The TFT LCD has a 3.2 inch diagonally measured active display area with 240 horizontal by 320 vertical pixels resolution.

P/N	P032H005
Size(inch)	3.2
Resolution	240*320
Active Area(mm)	48.60*64.80
Pixel pitch(um)	174*174

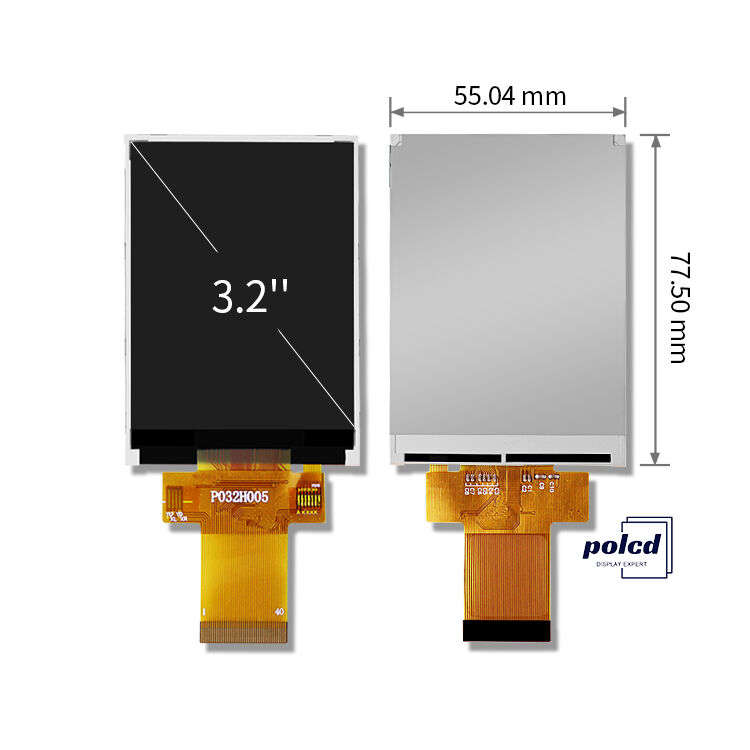

Outline Dimension(mm)	55.0477.503.7
Pixel arrangement	RGB Vertical Stripe
Display Mode	Normally Black
Viewing Angle	12 0'CLOCK
Display colors	262K
Brightness (cd/m²)	350
Contrast Ratio	600:1
Interface	8080 MCU 16bit
Back-light	LED Side-light type
Driver Ic	ILI9341V

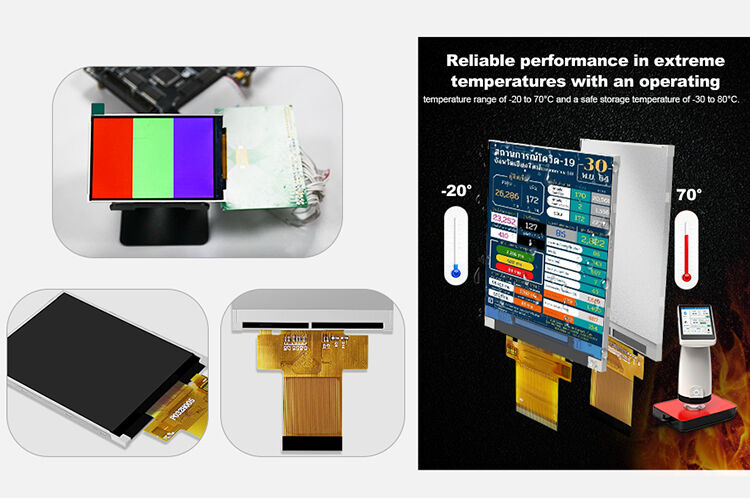

Operation Temperature(°C)	-20~70
Storage Temperature(°C)	-30~80
Response time(ms)	35
Pin Number	40

FAQ

Q: Can we customize product? What cost will be included?
A: The product can be customized. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.

Q: I want make sure some information before order, where should I find the files or datasheet?
A: The easiest way is contact our sales then we will provide any files if you need quickly.

Q: How long can I get the goods?
A: It depends on the quantity. Our inventory is mainly raw materials, semi-finished and a small number of finished products. Samples available in stock will be sent in 3 days; Small batch delivery takes 15-20 working days include producing; Large batch delivery takes 20-30 working days. We will list the time cost for you before order.

Q: What if the goods get lost/ damaged on the way?
A: We strongly suggest to buy insurance in case of any problem. We will discuss these details with you before order.
