Place of Origin:
Shenzhen, China
Brand Name:
P&O
Certification:
RoHS, ISO9001
Model Number:
P024C026
Contact Us
Video
Video

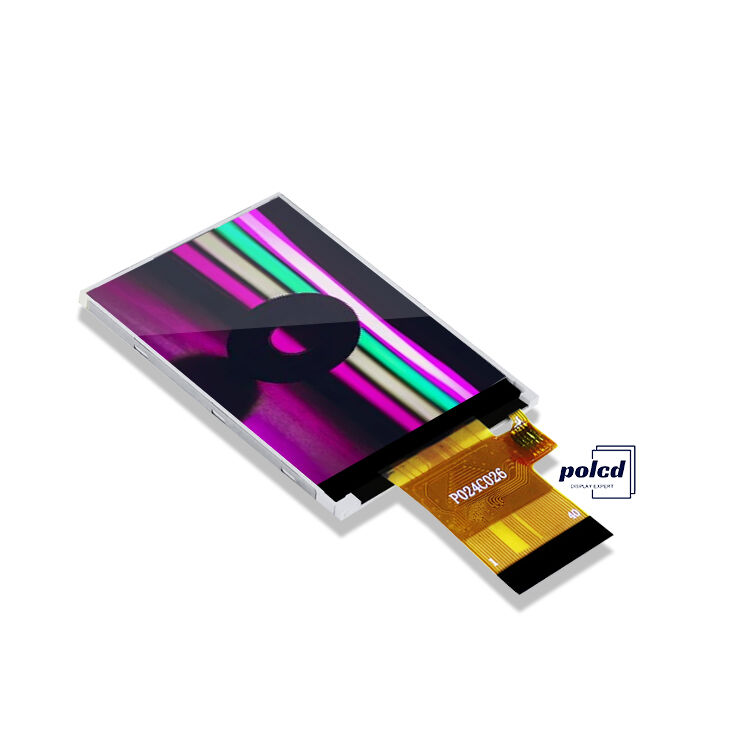

New published HD TFT Display for commercial and industrial use. Our TFT LCD has a 2.4 inch diagonally. The resolution of our tft lcd is 240 * 320. The normal brightness is 320 nits under the test of laboratory. The Interface of this LCD is 8080 MCU 16bits. We can also customize other types of interfaces and FPCs for you. The ST7789V driver IC provides on-chip storage and power system. If your products need to work under a temperature from -20°C to 70°C, then it can meet your needs.
| P/N | P024C026 |
| Size(inch) | 2.4 |
| Resolution | 240*320 |
| Active Area(mm) | 36.72*48.96 |
| Pixel pitch(um) | 51*153 |

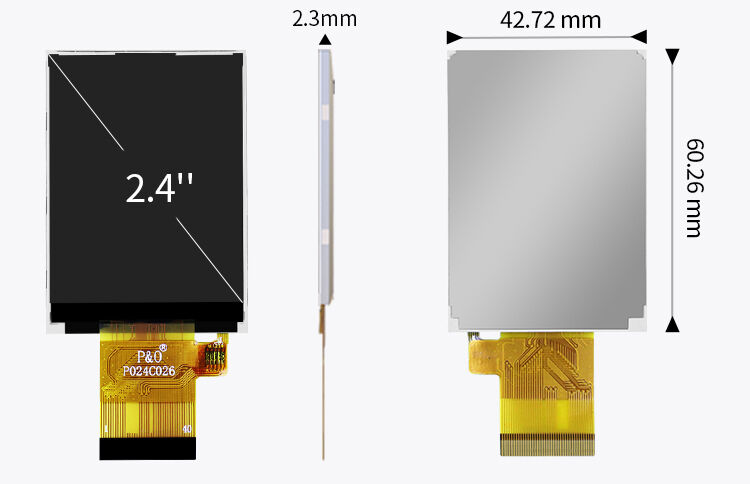

| Outline Dimension(mm) | 42.72*60.26*2.30 |
| Pixel arrangement | RGB Vertical Stripe |
| Display Mode | Normally Black |
| Viewing Angle | 12 0'CLOCK |
| Display colors | 262K |
| Brightness (cd/m²) | 320 |
| Contrast Ratio | 600:1 |
| Interface | 8080 MCU 16bits |
| Back-light | LED Side-light type |
| Driver Ic | ST7789V |
| Operation Temperature(°C) | -20~70 |
| Storage Temperature(°C) | -30~80 |
| Response time(ms) | 35 |
| Pin Number |
40 |
FAQ
Q: Can we customize product? What cost will be included?
A: The product can be customized. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.
Q: Where can I get the datasheet, initialization code, product drawings, test reports and other technical files?
A: Please contact our sales and we will provide any files if you need.
Q: How long can I get the goods?
A: It depends on the quantity. Our inventory is mainly raw materials, semi-finished and a small number of finished products. Samples available in stock will be sent in 3 days; Small batch delivery takes 15-20 working days include producing; Large batch delivery takes 20-30 working days. We will list the time cost for you before order.
Q: How to control the quality of products?
A: Our company has a professional quality team, and all products are 100% inspected prior to ship.
Q: We have agent in China mainland, is it possble to ship to our agent?
A: Of course. We can quote you EXW and ship to your agent. We welcome your agent to visit our factory, giving advise and do more things. As long as it is good for our business and relationship.
