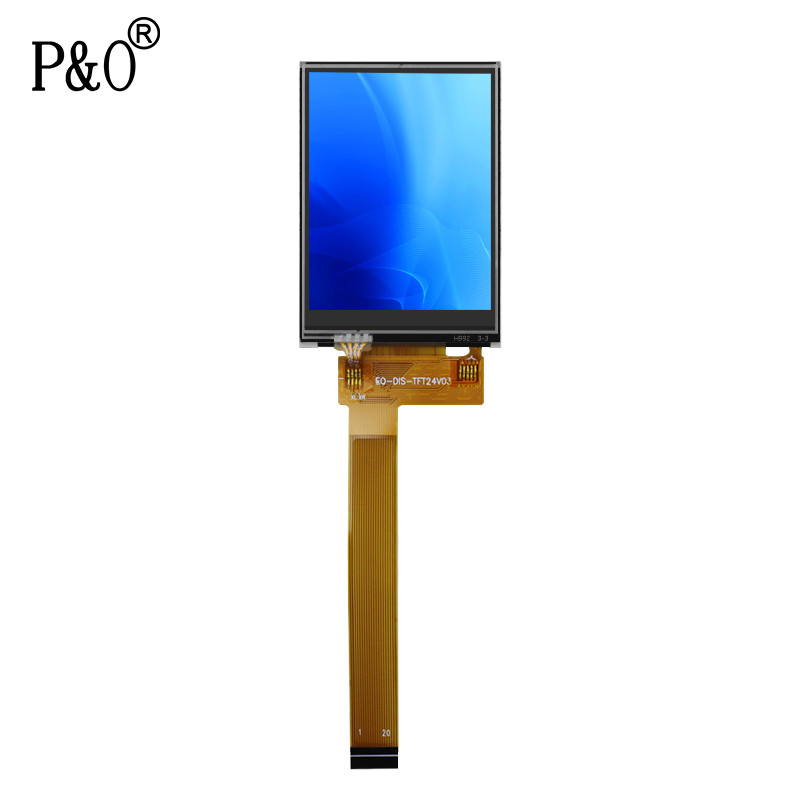

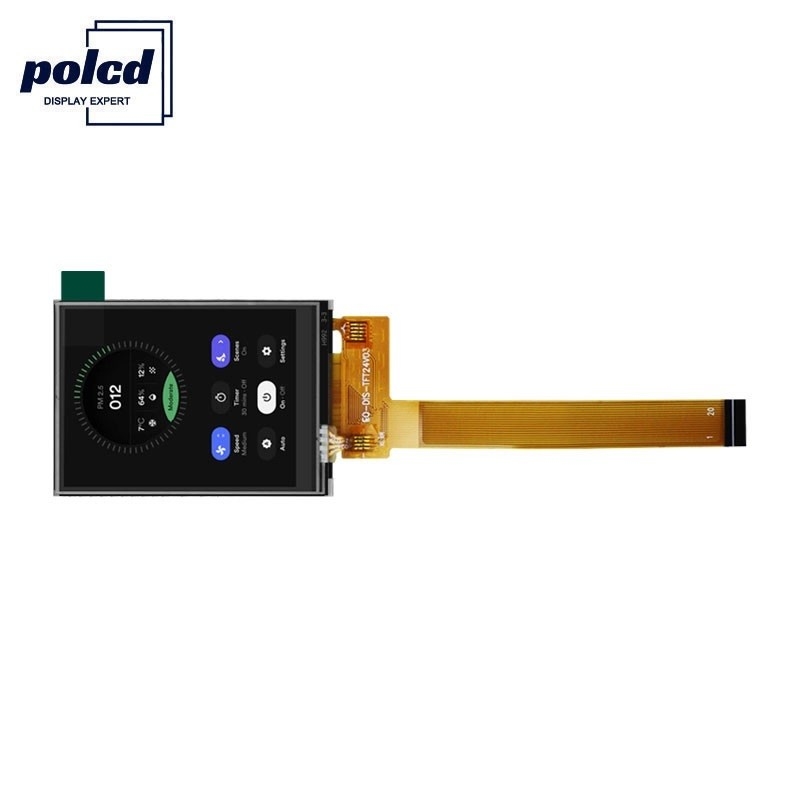

Polcd Black 8080 MCU 2.4 Inch Tft Display 8 Bit 2.4 Tft Spi 240x320

Polcd Black 8080 MCU 2.4 Inch Tft Display 8 Bit 2.4 Tft Spi 240x320

8080 MCU 2.4 Inch Tft Display

2.4 Inch Tft Display 8 Bit

8 Bit 2.4 Tft Spi 240x320

Place of Origin:

Shenzhen, China

Brand Name:



RoHS, ISO9001

Model Number:


Contact Us

Request A Quote
Product Details
Size (inch):
Brightness (cd/m²):
8080 MCU 8bits
Driver Ic:
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Please contact us for latest price
Packaging Details
20 cm * 30 cm * 40 cm
Delivery Time
5-8 working days
Payment Terms
T/T, L/C, Credit card, PayPal
Supply Ability
500,000 piece per week
Product Description

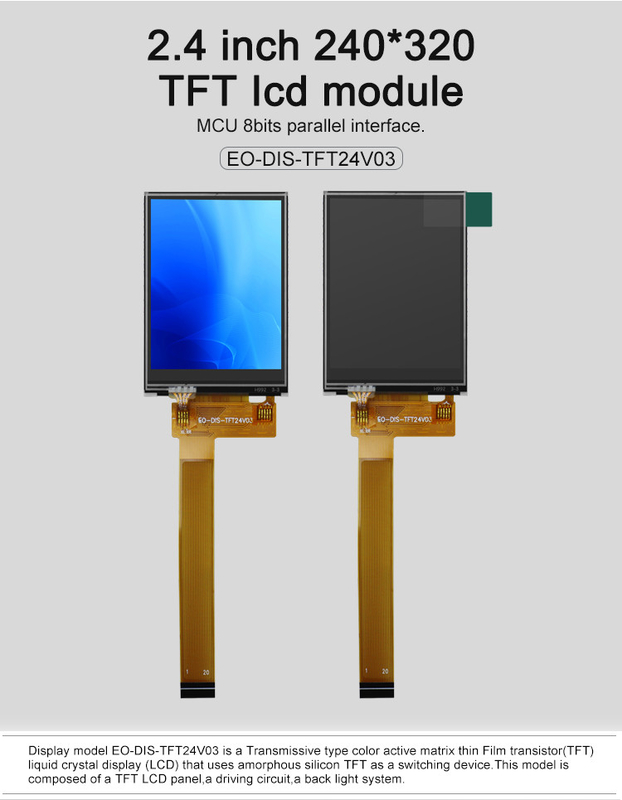

Normally Black EO-DIS-TFT24V03 LCD Panel 2.4 inch LCM 240*320 600:1 262K

EO-DIS-TFT24V03 Specification


Active Area(mm)36.72*48.96
Pixel pitch(um)51*153

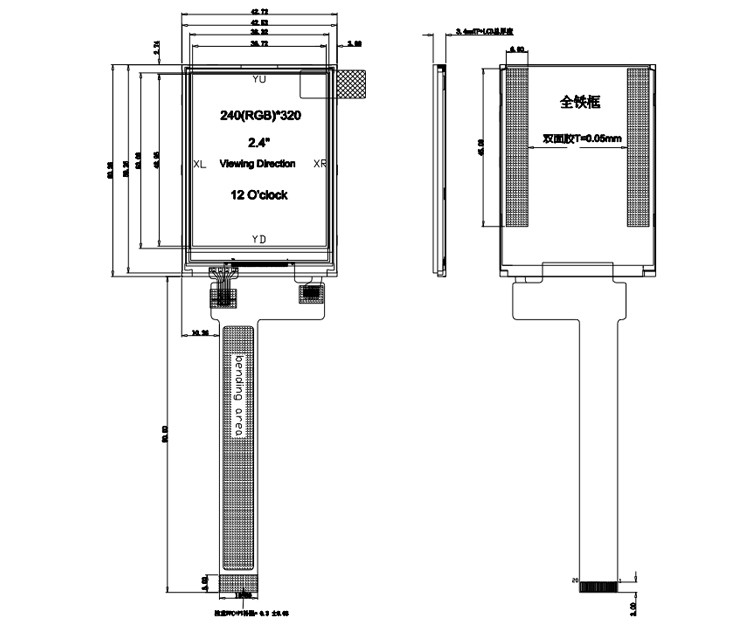

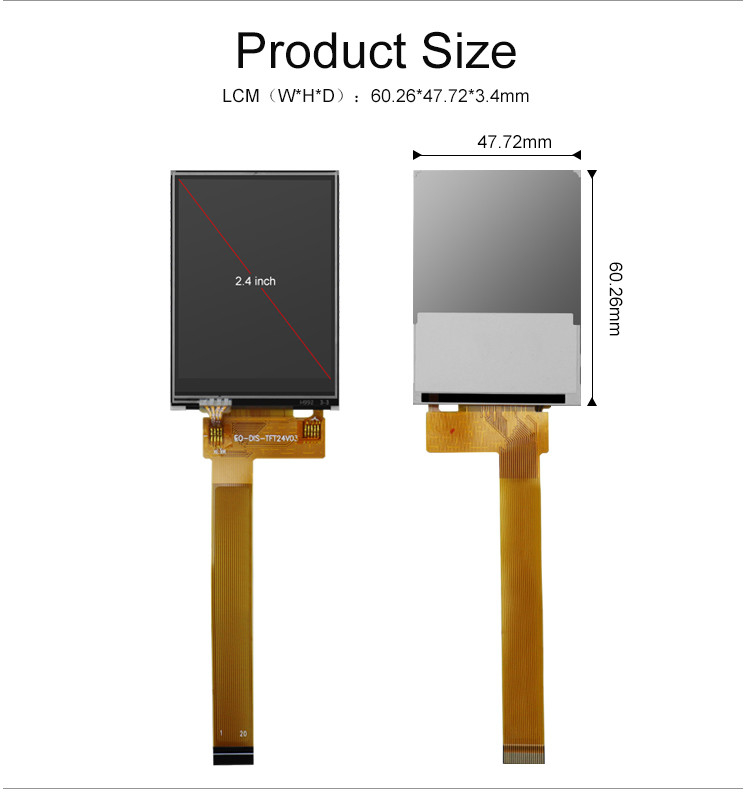

Outline Dimension(mm)42.72*60.26*3.40
Pixel arrangementRGB Vertical Stripe
Display ModeNormally Black
Viewing Angle12 0'CLOCK

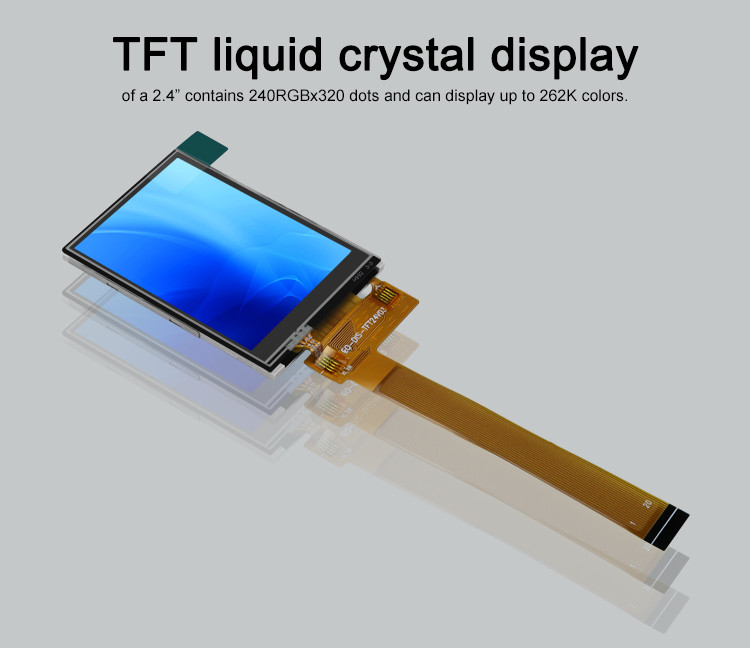

Display colors262K
Brightness (cd/m²)300
Contrast Ratio600:1
Interface8080 MCU 8bits

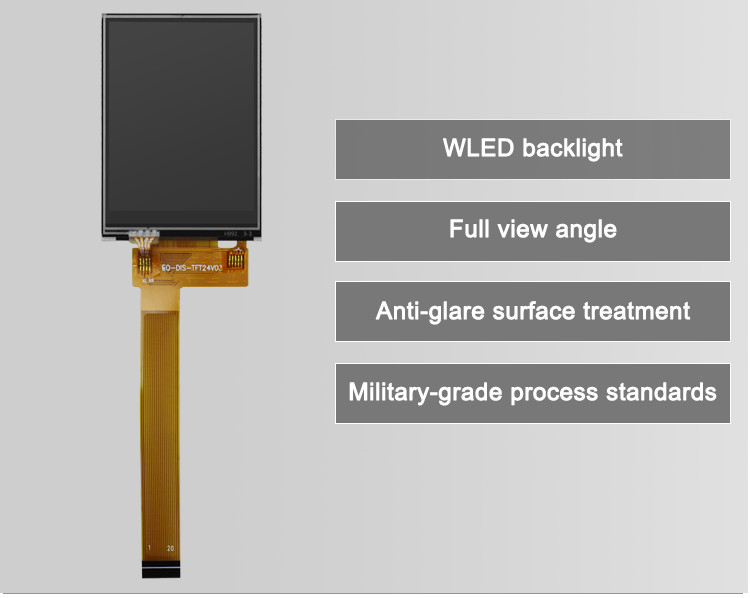

Back-lightLED Side-light type
Driver IcST7789V
Operation Temperature(°C)-20~70
Storage Temperature(°C)-30~80
Response time(ms)35
Pin Number20

What’s our advantage?
(1) Before shipment, we will test every LCD Screen and ensure the quality.
(2) We provide high quality lcd screens for customers all over the world.
(3) We have CE, ISO9001 Certifications and more for our Panels.
(4) Excellent service on before-sale, on-sale and after-sale.

Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.

Here is some other LCD panels stock for your easy reference:

Polcd Black 8080 MCU  2.4 Inch Tft Display 8 Bit 2.4 Tft Spi 240x320 0
Q: Can we customize product? What cost will be included?
A: The product can be customized. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.
Q: Where can I get the datasheet, initialization code, product drawings, test reports and other technical files?
A: Please contact our sales and we will provide any files if you need.
Q: Do you have products in stock? How long will it take for delivery?
A: Our inventory is mainly raw materials, semi-finished and a small number of finished products. After payment, sample available in stock will be sent within 3 days; Small batch delivery takes 2-3 weeks; Large batch delivery takes 3-4 weeks. Our sales will serve you these details before shipping.
Q: Can I trust the quality? We want good quality first.
A: Our company has a professional Quality Control Department, and all products are 100% inspected prior to ship. We welcome all the customers from the wolrd visiting our factory for checking any time.
