Place of Origin:
Shenzhen, China
Brand Name:
Polcd
Certification:
RoHS, ISO9001
Model Number:
P023H022
Contact Us
Video
Video

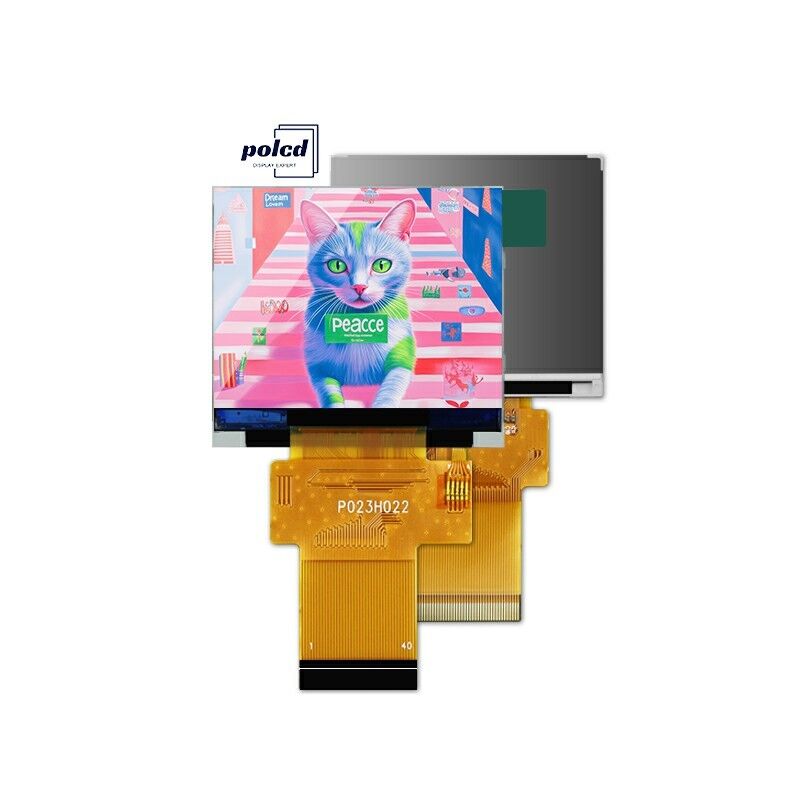

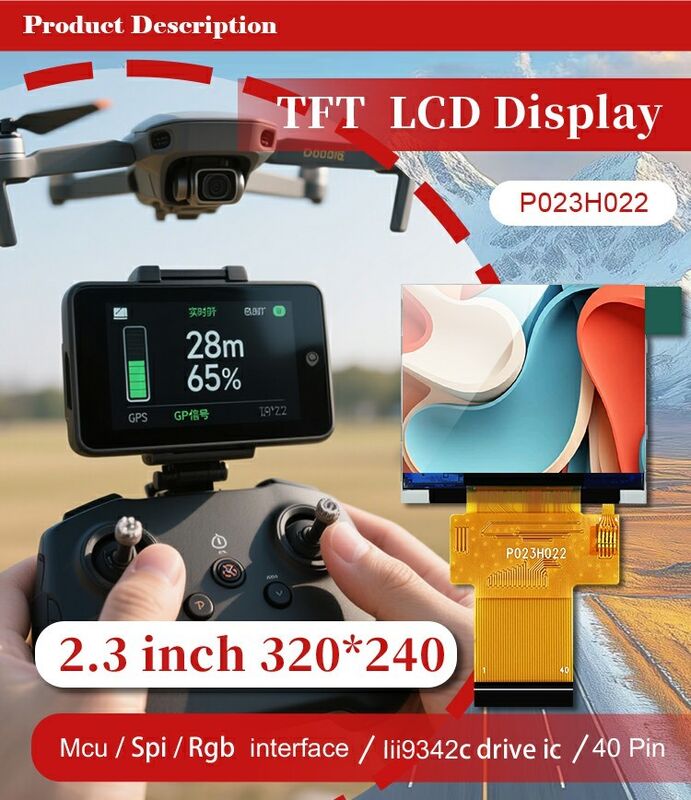

| Item | Specification |
| Model | P023H022 |
| Screen Size | 2.31 inch |
| Number of Pixel | 320RGB(H)x240(V) |
| Display area | 46.75(H)x35.06(V)mm |
| Pixel pitch | 0.1461(H)x0.1461(V)mm |
| Pins | 40 pins |
| Outline Dimension | 50.96x45.80x2.40mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally White |
| Viewing Direction(eye) | 12 0'CLOCK |
| Gray inversion direction | -- |
| Display Color | 262K |
| Luminance(cd/m2) | 250 nit |
| Contrast Ratio | 500:1 |
| Surface treatment | -- |
| Interface | MCU8/16BIT SPI3/4wire RGB18BIT |
| Back-light | LED Side-light type |
| Drive IC | ILI9342C |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
| Weight | -- |
Below are our other LCD panels stock for your easy reference:
| Hot selling P/N | Size (inch) | Resolution | Interface |
| N096-1608TBBIG11-H13 | 0.96 | 80*160 | 4 Line SPI |
| P114H002 | 1.14 | 135*240 | 4 Wire SPI |
| N133-2424TCBIG01-H12 | 1.33 | 240*240 | 4 Wire SPI |
| P169H002-CTP | 1.69 | 240*240 | 4 Line SPI |
| P177C011 | 1.77 | 800*480 | RGB 24bit |
| P020H017-IPS | 2 | 240*320 | MCU 8BIT |
| HINK-E0213A189-A0 | 2.13 | 122*250 | 3 Line SPI 4 Line SPI |
| P022H002 | 2.2 | 240*320 | 4 Line SPI |
| P023H005-V2 | 2.31 | 320*240 | 8080 MCU 16bit |
| EO-DIS-TFT24V03 | 2.4 | 240*320 | 8080 MCU 8bits |
| P027-40-V2 | 2.7 | 960*240 | RGB 8bit |
| P028H042 | 2.8 | 240*320 | MCU 8/16bit SPI3/4-wire |
| P032010A | 3.2 | 320*820 | SPI+16BIT RGB |
| P035C013-CTP | 3.5 | 320*480 | 8080 MCU 16bit |
| P035M048-IPS | 3.5 | 320*480 | 18BIT RG |
| P043B018 | 4.3 | 800*480 | RGB 24bit |
| P050B028-IPS-CTP | 5 | 800*480 | RGB 24bit |
| P055H018-IPS-V3 | 5.5 | 720*1280 | MIPI |
| P070C012 | 7 | 800*480 | RGB 24bit |
| T10150UX-V01 | 10.1 | 1024*600 | RGB 24bit |
We also have other industrial LCD panels, please contact to us for any information you need to know.
Why do you choose us?
• Quick response to you within 24 hours.
• More than 10-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
The reasons you choose us
1) More competitive price! As a professional LCD Distributor, we have our own product line to support us for the more competitive service, not only the price, but also size hard to find.
2) Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3) Fast delievery! Delivery time will be faster than others.
4) Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5) Best sale-service! Professional team to service with you before sale, on sale & after service.
FAQ
Q: Can we customize product? What cost will be included?
A: The product can be customized. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.
Q: Where can I get the datasheet, initialization code, product drawings, test reports and other technical files?
A: Please contact our sales and we will provide any files if you need.
Q: Do you have products in stock? How long will it take for delivery?
A: Our inventory is mainly raw materials, semi-finished and a small number of finished products. After payment, sample available in stock will be sent within 3 days; Small batch delivery takes 2-3 weeks; Large batch delivery takes 3-4 weeks. Our sales will serve you these details before shipping.
Q: What if the goods get lost/ damaged on the way?
A: We strongly suggest to buy insurance in case of any problem. We will discuss these details with you before order.
