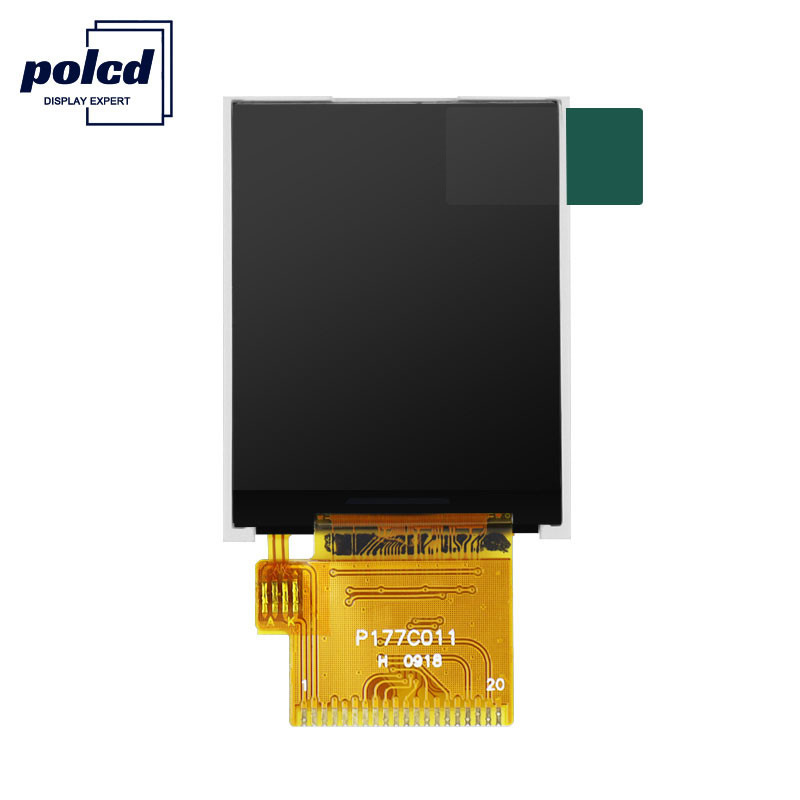

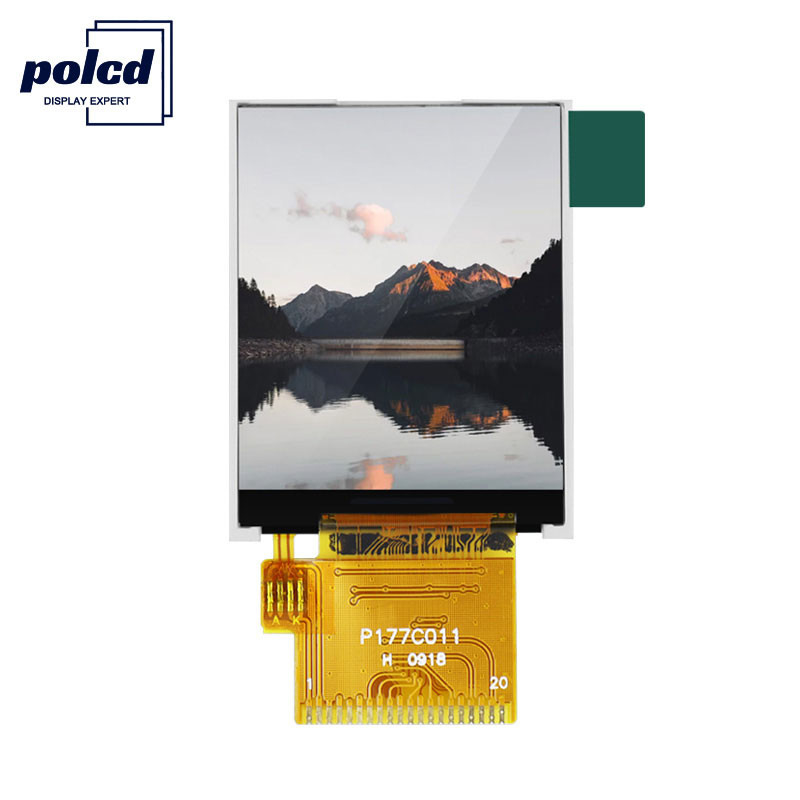

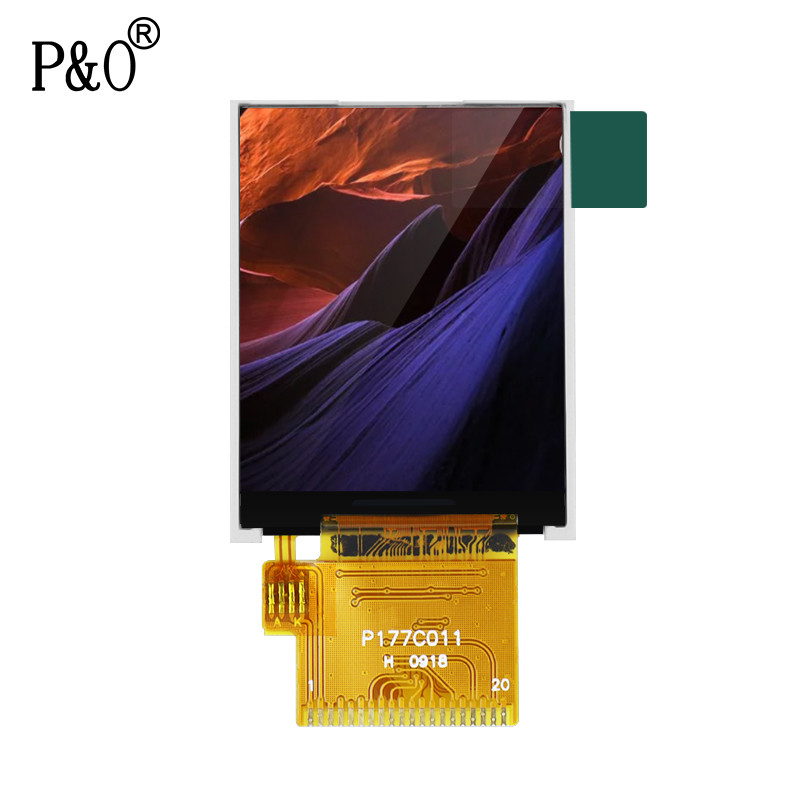

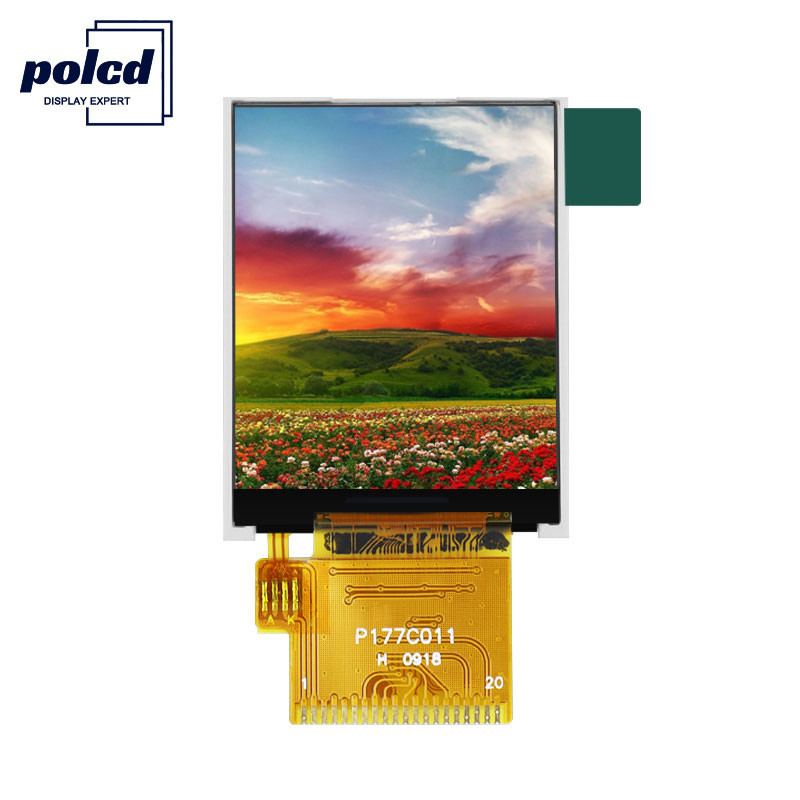

Polcd Resolution 128*160 1.77 Tft Lcd ST7735S TFT LCD Display For Commercial

Polcd Resolution 128*160 1.77 Tft Lcd ST7735S TFT LCD Display For Commercial

800X480 1.77 Tft Lcd

1.77 Tft Lcd ST7262

ST7262 TFT LCD Display

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P177C011

Contact Us

Request A Quote
Product Details
P/N:
P177C011
Size (inch):
1.77
Resolution:
128*160
Brightness (cd/m²):
300
Interface:
RGB 24bit
Driver Ic:
ST7262
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
20 cm * 30 cm * 40 cm
Delivery Time
5-8 working days
Payment Terms
T/T, L/C, Credit card, PayPal
Supply Ability
500,000 piece per week
Product Description

New published LCD Touch Panel for commercial and industrial use.



Our TFT LCD has a 1.77 inch diagonally. The resolution of our tft lcd is 800 * 480. The normal brightness is 300 nits under the test of laboratory. The Interface of this LCD is RGB 24bit.





P/N P177C011
Size(inch) 1.77
Resolution 128*160
Active Area(mm) 28.03*35.04
Pixel pitch(um) 73*219
Outline Dimension(mm) 34.00*43.70*2.5
Pixel arrangement RGB Vertical Stripe
Display Mode Normally Black
Viewing Angle ALL
Display colors 262K
Brightness
(cd/m²)
300
Contrast Ratio 300:1
Interface RGB 24bit
Back-light LED Side-light type
Driver Ic ST7735S
Operation Temperature(°C) -20~70
Storage Temperature(°C) -30~80
Response time(ms) 30
Pin Number 40



We can also customize other types of interfaces and FPCs for you. The ST7262 driver IC provides on-chip storage and power system. If your products need to work under a temperature from -20°C to 70°C, then it can meet your needs.



Hot selling P/N Size (inch) Resolution Interface
N096-1608TBBIG11-H13 0.96 80*160 4 Line SPI
P114H002 1.14 135*240 4 Wire SPI
N133-2424TCBIG01-H12 1.33 240*240 4 Wire SPI
P169H002-CTP 1.69 240*240 4 Line SPI
P177C011 1.77 128*160 RGB 24bit
P020H017-IPS 2 240*320 MCU 8BIT
HINK-E0213A189-A0 2.13 122*250 3 Line SPI 4 Line SPI
P022H002 2.2 240*320 4 Line SPI
P023H005-V2 2.31 320*240 8080 MCU 16bit
EO-DIS-TFT24V03 2.4 240*320 8080 MCU 8bits
P027-40-V2 2.7 960*240 RGB 8bit
P028H042 2.8 240*320 MCU 8/16bit SPI3/4-wire
P032010A 3.2 320*820 SPI+16BIT RGB
P035C013-CTP 3.5 320*480 8080 MCU 16bit
P035M048-IPS 3.5 320*480 18BIT RG
P043B018 4.3 800*480 RGB 24bit
P050B028-IPS-CTP 5 800*480 RGB 24bit
P055H018-IPS-V3 5.5 720*1280 MIPI
P070C012 7 800*480 RGB 24bit
T10150UX-V01 10.1 1024*600 RGB 24bit



Polcd Resolution 128*160 1.77 Tft Lcd ST7735S TFT LCD Display For Commercial 0



FAQ


Q: Can we customize product? What cost will be included?
A: The product can be customized. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.

Q: Where can I get the datasheet, initialization code, product drawings, test reports and other technical files?
A: Please contact our sales and we will provide any files if you need.

Q: How you ship the goods?
A: Usually we will ship the sample by fast delivery. No matter how we will take the best shipping method you agree with. Shipping cost should pay by your side, please kindly know.

Q: What kind of packaging? Will the transport process be damaged?
A: Packed in anti-static bags with foam box to ensure safety in transportation.
