Place of Origin:
Shenzhen, China
Brand Name:
Polcd
Certification:
RoHS, ISO9001
Model Number:
P169H002-CTP
Contact Us
Video
Video

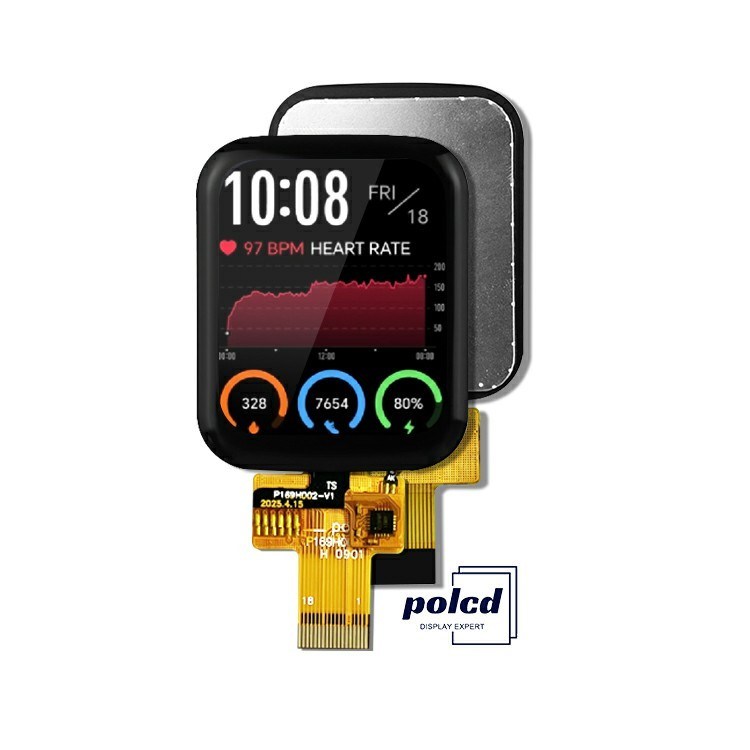

New published LCD Touch Panel for commercial and industrial use. Our TFT LCD has a 1.69 inch diagonally. The resolution of our tft lcd is 240 * 240. The normal brightness is 350 nits under the test of laboratory. The Interface of this LCD is 4 Line SPI .
| P/N | P169H002-CTP |
| Size(inch) | 1.69 |
| Resolution | 240*240 |
| Active Area(mm) | 27.97*32.63 |
| Pixel pitch(um) | 116.55*116.55 |
| Outline Dimension(mm) | 33.13*41.13*3.61 |
| Pixel arrangement | RGB Vertical Stripe |
| Display Mode | Normally Black |
| Viewing Angle | ALL |
| Display colors | 262K |
| Brightness (cd/m²) |
350 |
| Contrast Ratio | 800:1 |
| Interface | 4 Line SPI |
| Back-light | LED Side-light type |
| Driver Ic | ST7789V |
| Operation Temperature(°C) | -20~70 |
| Storage Temperature(°C) | -30~80 |
| Response time(ms) | 35 |
| Pin Number | 18 |
We can also customize other types of interfaces and FPCs for you. The ST7789V driver IC provides on-chip storage and power system. If your products need to work under a temperature from -20°C to 70°C, then it can meet your needs.
FAQ
Q: Can we customize product? What cost will be included?
A: The product can be customized. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.
Q: Where can I get the datasheet, initialization code, product drawings, test reports and other technical files?
A: Please contact our sales and we will provide any files if you need.
Q: What is your delivery method?
A: EXW Shenzhen by DHL/ UPS/ FedEx/ TNT and any other method you want. Or ship the goods to your forwarder in China mainland and Hong Kong.
Q: Can I trust the quality? We want good quality first.
A: Our company has a professional Quality Control Department, and all products are 100% inspected prior to ship. We welcome all the customers from the wolrd visiting our factory for checking any time.
Q: Can we visit your factory? How can I visit your factory? Any limit?
A: Our factory is open to all the visitors. Before you visit you need to make an appointment. There is no limit for visitors. All you need to do is follow the rules in the factory.
