Place of Origin:
Shenzhen, China
Brand Name:
Polcd
Certification:
RoHS, ISO9001
Model Number:
P020H017-IPS
Contact Us
Video
Video

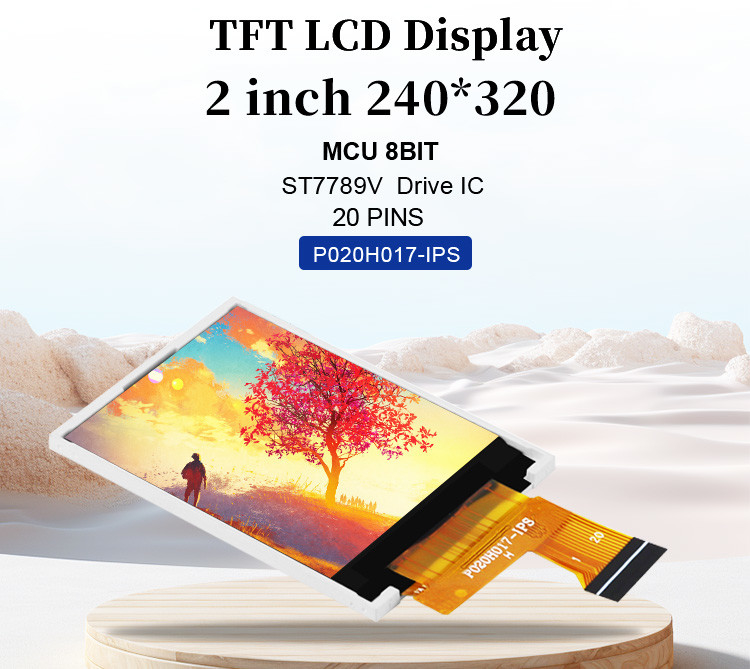

What can we expect from this one? Before this question it is better to know some information about this IPS TFT LCD Display. Screen size is 2 inch. A very common and hot selling size for small size TFT display. The TFT LCD offers a physical resolution of 240 * 320, clear enough for most scenes to be used. 300 nits allow this lcd to work well indoors.
| P/N | P020H017-IPS |
| Size(inch) | 2 |
| Resolution | 240*320 |
| Active Area(mm) | 30.60*40.80 |
| Pixel pitch(um) | 42.5*127.5 |

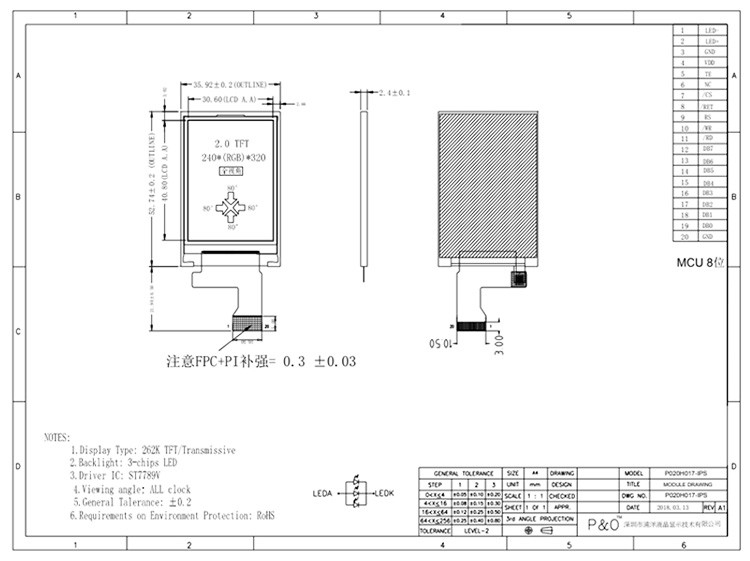

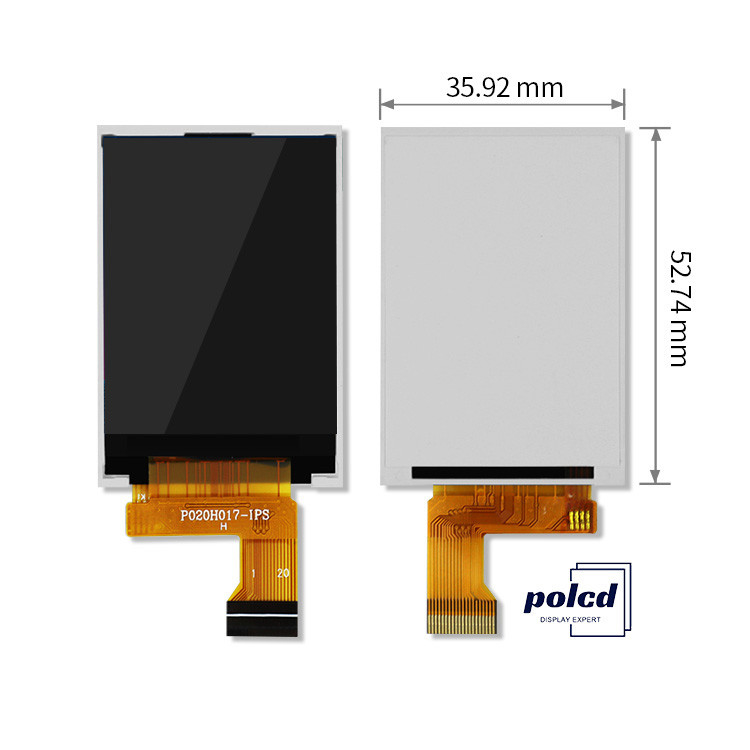

| Outline Dimension(mm) | 35.92*52.74*2.40 |
| Pixel arrangement | RGB Vertical Stripe |
| Display Mode | Normally Black |
| Viewing Angle | ALL |
| Display colors | 262K |
| Brightness (cd/m²) |
300 |
| Contrast Ratio | 800:1 |
| Interface | MCU 8BIT |
| Back-light | LED Side-light type |
| Driver Ic | ST7789V |
| Operation Temperature(°C) | -20~70 |
| Storage Temperature(°C) | -30~80 |
| Response time(ms) | 30 |
| Pin Number |
20 |
Supported by MCU 8BIT, this type of TFT LCD can be used in many applications. ST7789V is the driver IC of the tft lcd. The operation temperature is -20°C to 70°C and the storage temperature is -30°C to 80°C which compliant with industry standards.
Q: I cannot find the size, the interface or the FPC I need, is it possible for customization?
A: Of course you can customize. Just tell us what you need. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.
Q: Where can I get the datasheet, initialization code, product drawings, test reports and other technical files?
A: Please contact our sales and we will provide any files if you need.
Q: What is your delivery method?
A: EXW Shenzhen by DHL/ UPS/ FedEx/ TNT and any other method you want. Or ship the goods to your forwarder in China mainland and Hong Kong.
Q: How to control the quality of products?
A: Our company has a professional quality team, and all products are 100% inspected prior to ship.
