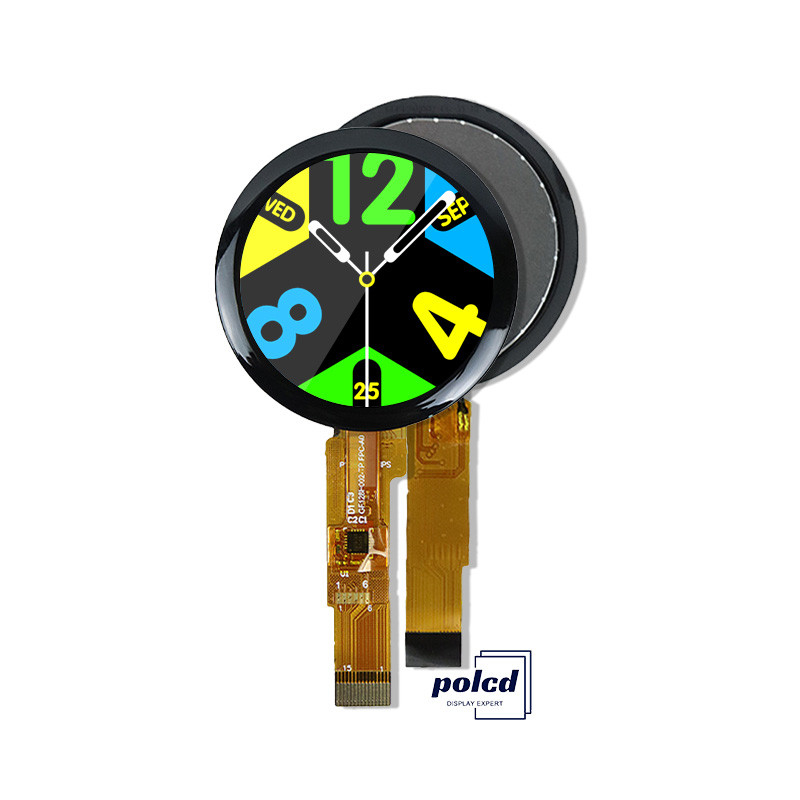

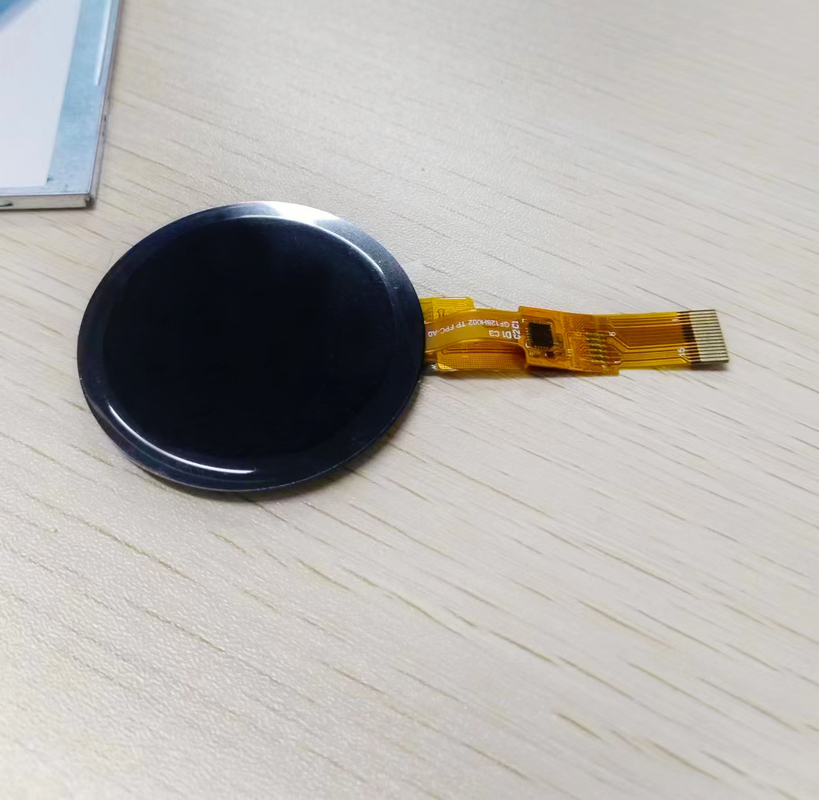

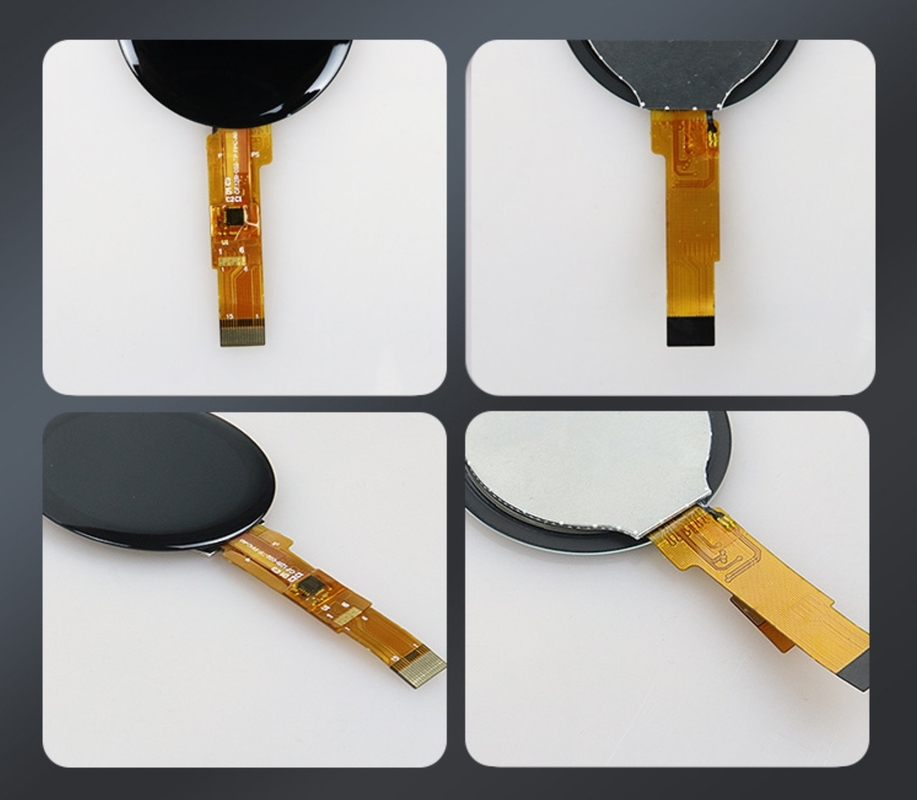

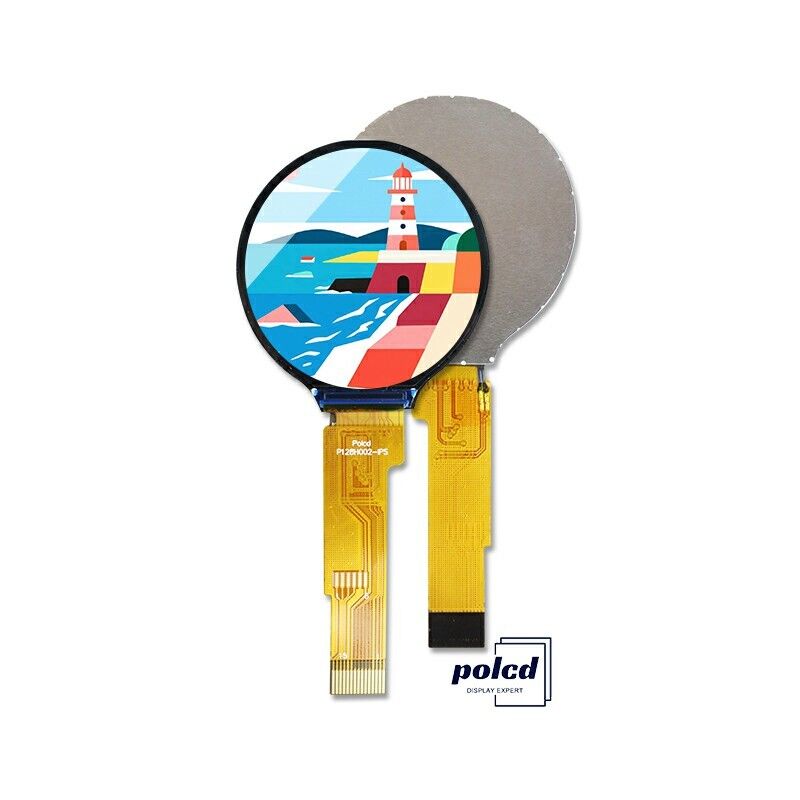

Polcd Small Round 1.28 Inch LCD Screen 240*240 1.3 Inch Spi Interface IPS Circular Tft Lcd Module Panel

Polcd Small Round 1.28 Inch LCD Screen 240*240 1.3 Inch Spi Interface IPS Circular Tft Lcd Module Panel

Circular Tft Lcd Module Panel

1.28 Inch Lcd Screen

240*240 Lcd Screen

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P128H002-IPS-CTP

Contact Us

Request A Quote
Product Details
Resolution:
1.28 Inch 240*240
Interface:
4W SPI
Driver IC:
ST7701S
Brightness (cd/m²):
300 Nit
Viewing Angle:
IPS All View Angle
Display Area:
32.40(H)x32.40(V)mm
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Delivery Time
1-7 working days
Payment Terms
T/T, L/C, Credit card, PayPal, D/A, D/P, Western Union, MoneyGram
Supply Ability
25,000 PCS per day
Product Description

Parameter:

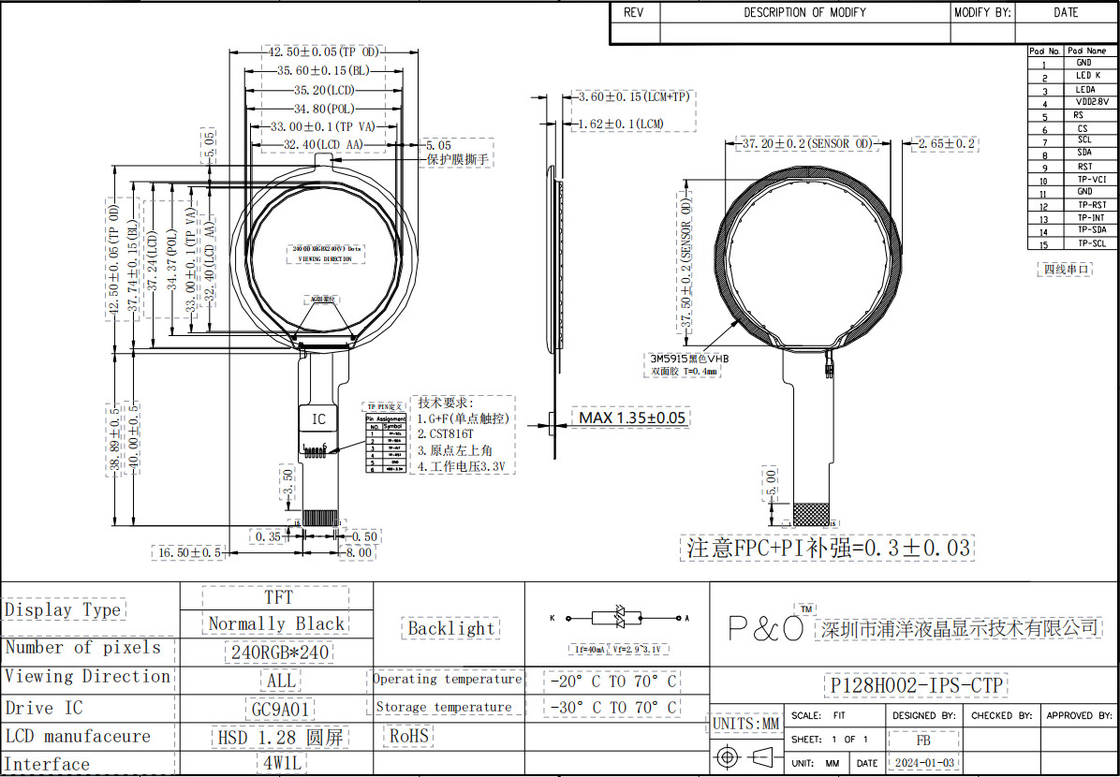

Model P128H002-IPS-CTP
Screen Size 1.28 inch
Number of Pixel 240RGB(H)x240(V)
Display area 32.40(H)x32.40(V)mm
Pixel pitch 0.135(H)x0.135(V)mm
Pin 15 pin

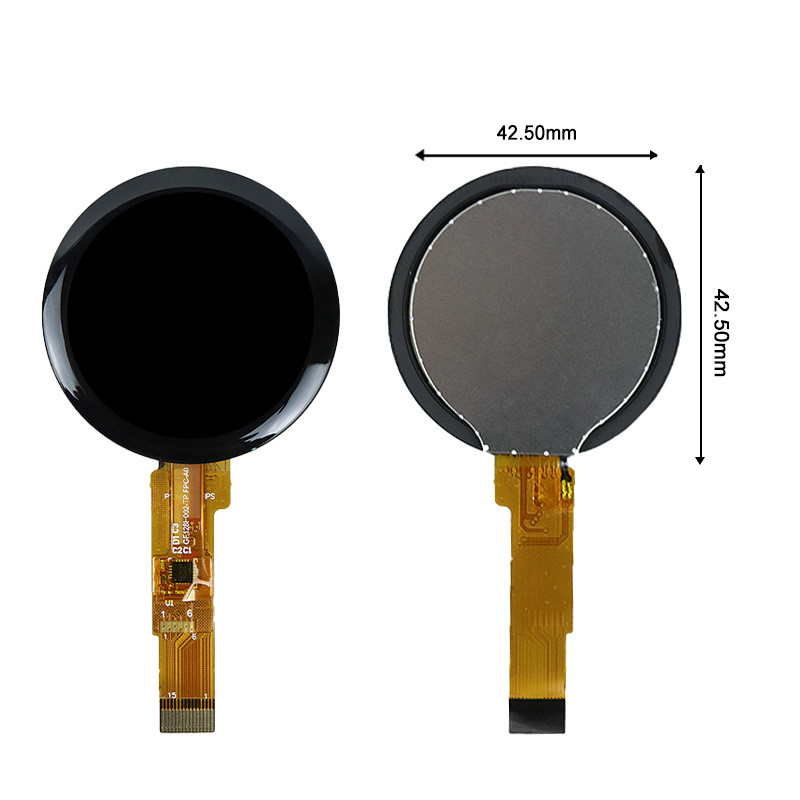

Outline Dimension 42.50x42.50x3.60mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Display Color 262K
Luminance(cd/m2) 300 nit
Contrast Ratio 1100:1
Interface 4W SPI
Back-light LED Side-light type
LCM Drive IC GC9A01
CTP Drive IC GST816T
Operation Temperature -20~70℃
Storage Temperature -30~80℃



Polcd Small Round 1.28 Inch LCD Screen 240*240 1.3 Inch Spi Interface IPS Circular Tft Lcd Module Panel 0Polcd Small Round 1.28 Inch LCD Screen 240*240 1.3 Inch Spi Interface IPS Circular Tft Lcd Module Panel 1
