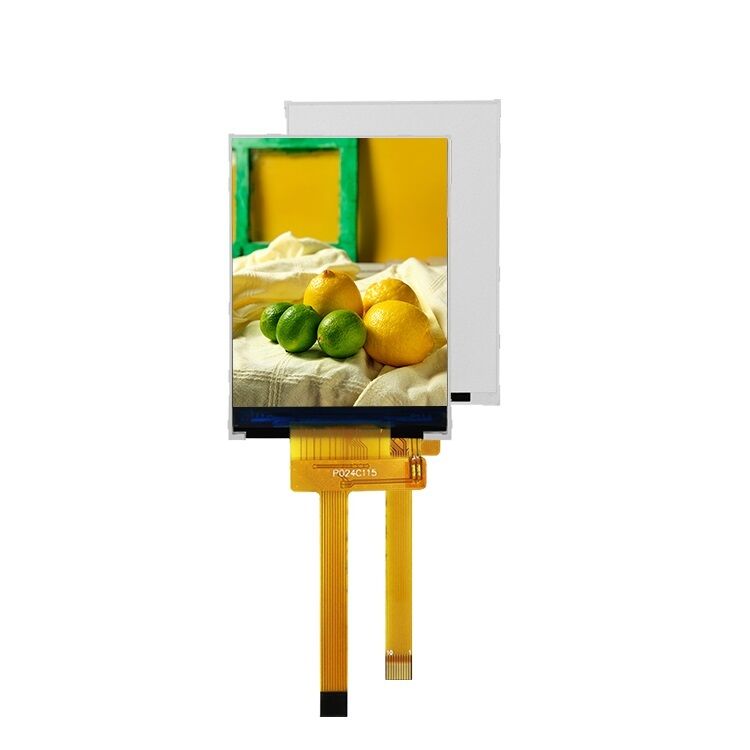

Polcd 240X320 Spi Lcd Display 260 Nits 4 Wire SPI 2.4 Spi Tft Lcd Display

Polcd 240X320 Spi Lcd Display 260 Nits 4 Wire SPI 2.4 Spi Tft Lcd Display

240X320 Spi Lcd Display 260 Nits

Spi Lcd Display 260 Nits 4 Wire SPI

4 Wire SPI 2.4 Spi Tft Lcd Display

Place of Origin:

Shenzhen, China

Brand Name:

Polcd

Certification:

RoHS, ISO9001

Model Number:

P024C115

Contact Us

Request A Quote
Product Details
P/N:
P024C115
Size (inch):
2.4
Resolution:
240*320
Brightness (cd/m²):
260
Interface:
4 Wire SPI
Driver Ic:
ST7789V3
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Please contact us for latest price
Packaging Details
20 cm * 30 cm * 40 cm
Delivery Time
5-8 working days
Payment Terms
T/T, L/C, Credit card, PayPal
Supply Ability
500,000 piece per week
Product Description

This HD TFT Display is a color-active matrix thin-film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. If your product requires a size 2.4 inch then our lcd is just what you need. Improve your product design by adding our 240 * 320 resolution product. QC department measured the luminance is 260 nits under normal operating.



P/N P024C115
Size(inch) 2.4
Resolution 240*320
Brightness(cd/m²) 260
Interface 4 Wire SPI
Driver Ic ST7789V3
Operation Temperature(°C) -20~70
Pin Number 10



This type of 4 Wire SPI can be suitable for a variety of scenarios. From the datasheet we can know the driver of the LCD is is ST7789V3. THE lowest operating temperature can reach -20°C (-4°F) and highest is 70°C (158°F).



Polcd 240X320 Spi Lcd Display  260 Nits 4 Wire SPI 2.4 Spi Tft Lcd Display 0




Q: I cannot find the size, the interface or the FPC I need, is it possible for customization?
A: Of course you can customize. Just tell us what you need. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.

Q: I want make sure some information before order, where should I find the files or datasheet?
A: The easiest way is contact our sales then we will provide any files if you need quickly.

Q: How long can I get the goods?
A: It depends on the quantity. Our inventory is mainly raw materials, semi-finished and a small number of finished products. Samples available in stock will be sent in 3 days; Small batch delivery takes 15-20 working days include producing; Large batch delivery takes 20-30 working days. We will list the time cost for you before order.

Q: What if the goods get lost/ damaged on the way?
A: We strongly suggest to buy insurance in case of any problem. We will discuss these details with you before order.
