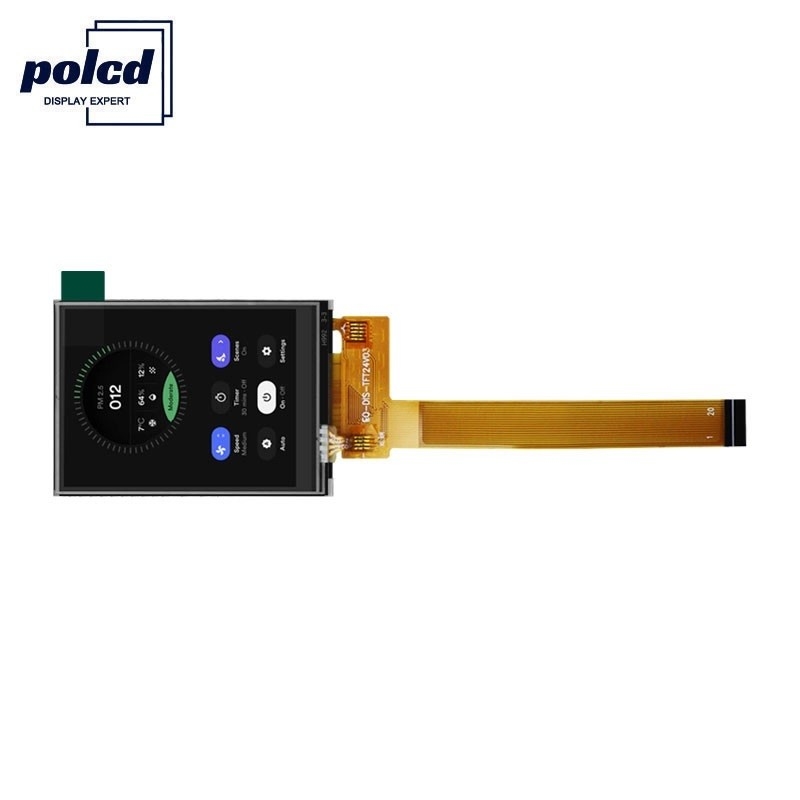

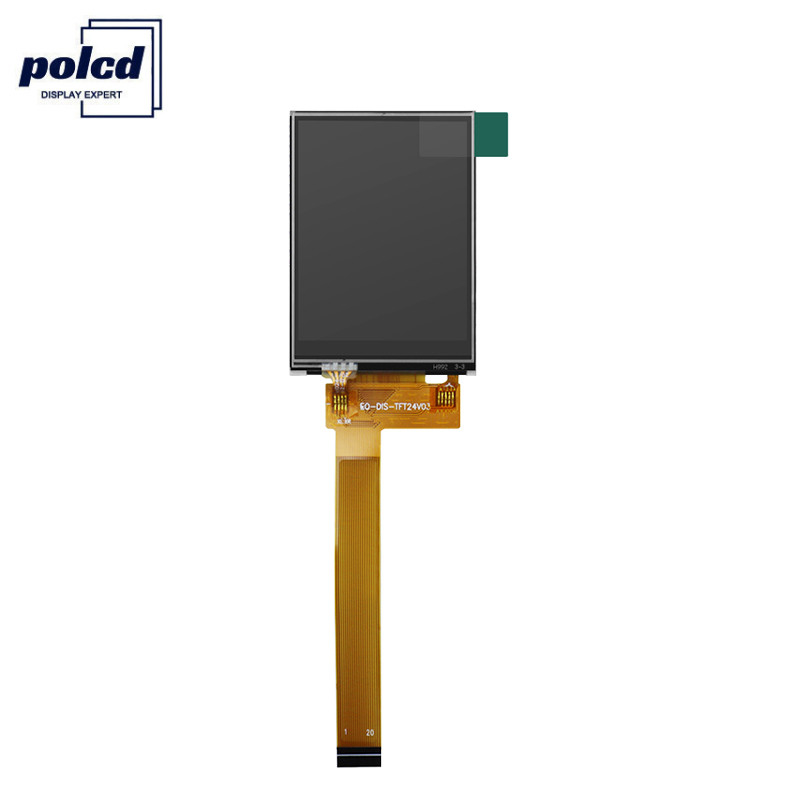

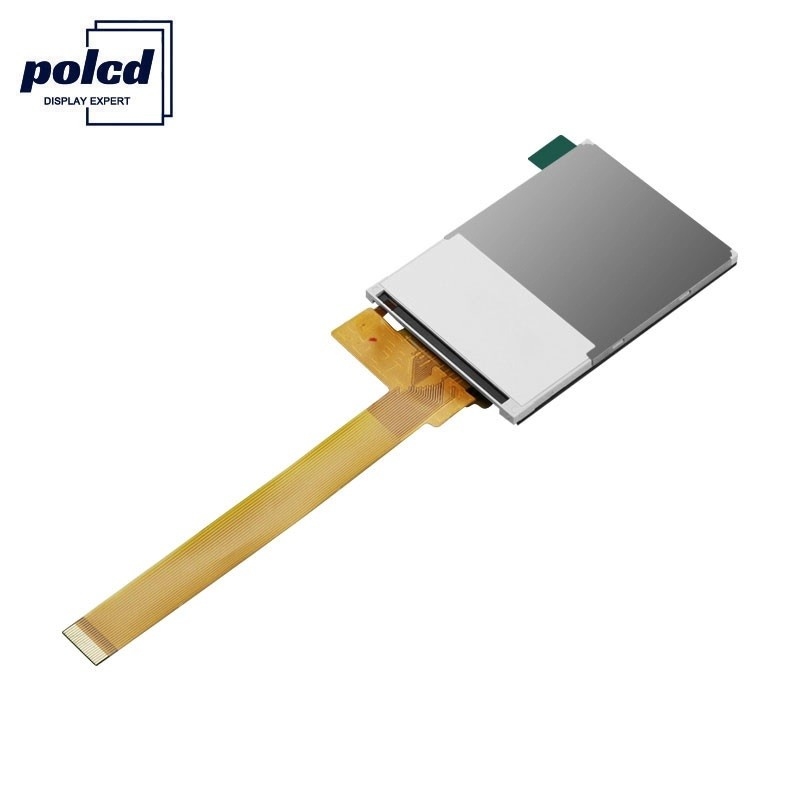

Polcd Factory Viewing Direction 12 0'clock Display Color 262k Touch Screen Displays Small 2.4 Lcd Display Panel
What can we expect from this one? Before this question it is better to know some information about this TFT LCD Display. Screen size is 2.4 inch. A very common and hot selling size for small size TFT display. The TFT LCD offers a physical resolution of 240 * 320, clear enough for most scenes to be used. 300 nits allow this lcd to work well indoors.
| P/N | EO-DIS-TFT24V03 |
| Size(inch) | 2.4 |
| Resolution | 240*320 |
| Active Area(mm) | 36.72*48.96 |
| Pixel pitch(um) | 51*153 |

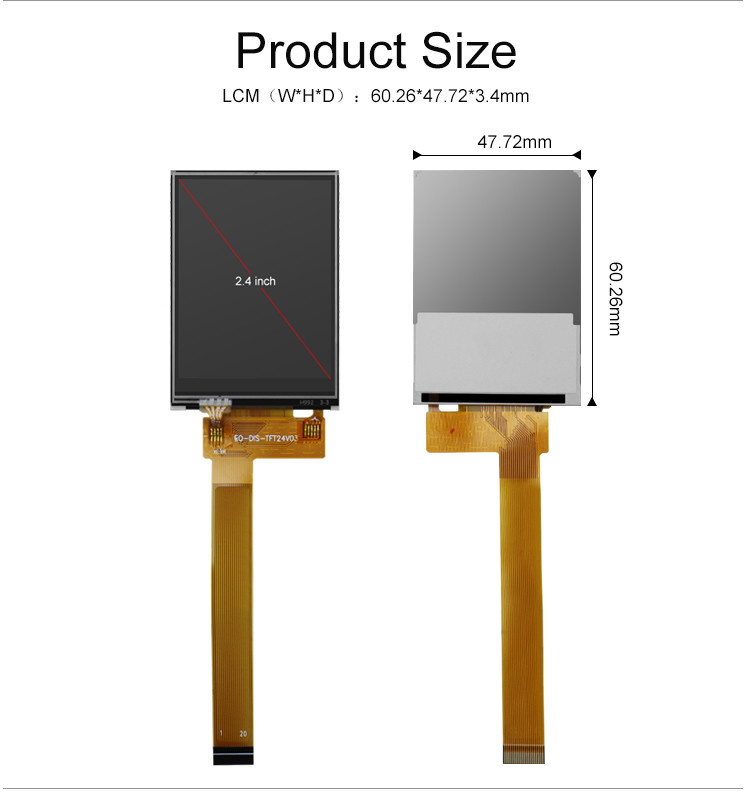

| Outline Dimension(mm) | 42.72*60.26*3.40 |
| Pixel arrangement | RGB Vertical Stripe |
| Display Mode | Normally Black |
| Viewing Angle | 12 0'CLOCK |
| Display colors | 262K |
| Brightness (cd/m²) | 300 |
| Contrast Ratio | 600:1 |
| Interface | 8080 MCU 8bits |

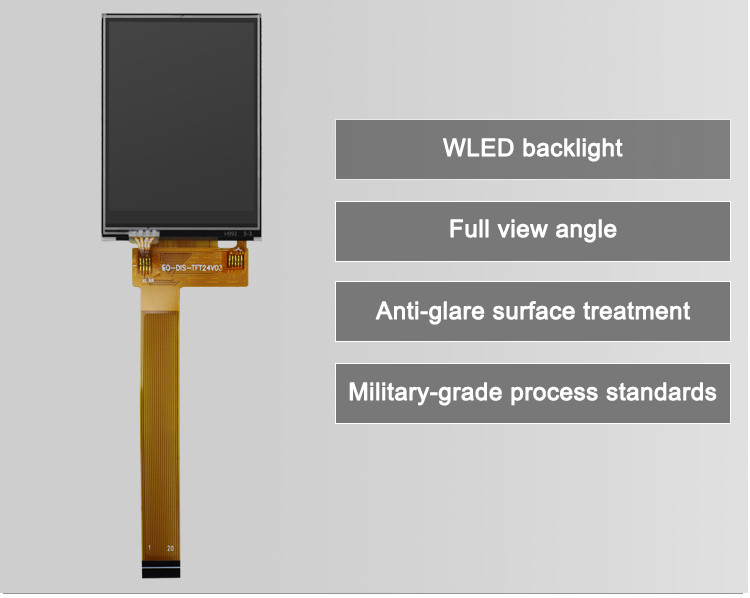

| Back-light | LED Side-light type |
| Driver Ic | ST7789V |
| Operation Temperature(°C) | -20~70 |
| Storage Temperature(°C) | -30~80 |
| Response time(ms) | 35 |
| Pin Number | 20 |
Supported by 8080 MCU 8bits, this type of TFT LCD can be used in many applications. ST7789V is the driver IC of the tft lcd. The operation temperature is -20°C to 70°C and the storage temperature is -30°C to 80°C which compliant with industry standards.
Q: I cannot find the size, the interface or the FPC I need, is it possible for customization?
A: Of course you can customize. Just tell us what you need. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.
Q: I want make sure some information before order, where should I find the files or datasheet?
A: The easiest way is contact our sales then we will provide any files if you need quickly.
Q: What is your delivery method?
A: EXW Shenzhen by DHL/ UPS/ FedEx/ TNT and any other method you want. Or ship the goods to your forwarder in China mainland and Hong Kong.
Q: What if the goods get lost/ damaged on the way?
A: We strongly suggest to buy insurance in case of any problem. We will discuss these details with you before order.
