Place of Origin:
Shenzhen, China
Brand Name:
Polcd
Certification:
RoHS, ISO9001
Model Number:
P028B122-IPS
Contact Us

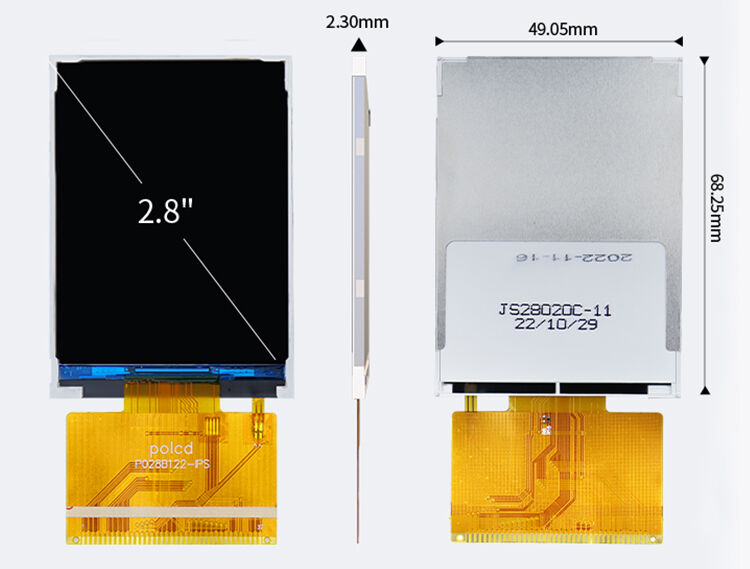

Polcd Full Color 2.8 inch TFT Display 240*320 Small Size RGB Screen IPS All Viewing LCD Modules
| Item | Specification | Unit |
| Screen Size | 2.8 inch |
Diagonal |
| Number of Pixel | 240RGB(H)x320(V) | Pixels |
| Display area | 43.20(H)x57.60(V) | mm |
| Pixel pitch | 0.18(H)x0.18(V) | mm |
| Outline Dimension | 50.00x69.20x2.30 | mm |
| Pixel arrangement | RGB Vertical Stripe | -- |
| Display mode | Normally Black | -- |
| Viewing Direction(eye) | ALL | -- |
| Gray inversion direction | -- | |
| Display Color | 262K | -- |
| Luminance(cd/m2) | 300 | nit |
| Contrast Ratio | 500:1 | -- |
| Surface treatment | -- | -- |
| Interface | MCU 8/16bit | |
| Back-light | LED Side-light type | -- |
| Drive IC | ST7789V | |
| Operation Temperature | -20~70 | ℃ |
| Storage Temperature | -30~80 | ℃ |
| Weight | -- | g |
