Place of Origin:
Shenzhen, China
Brand Name:
Polcd
Certification:
RoHS, ISO9001
Model Number:
P028H025-V2-RTP
Contact Us
Video

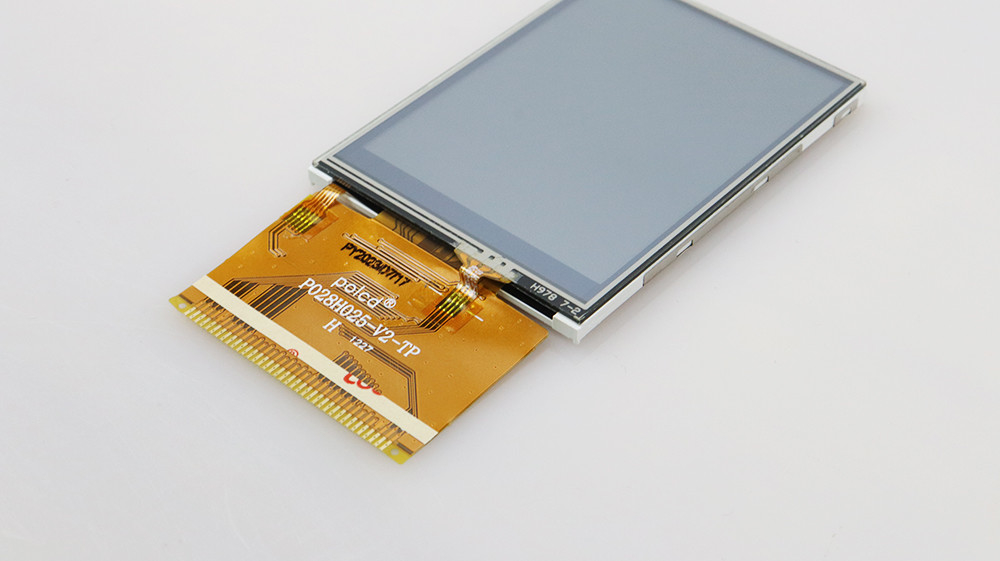

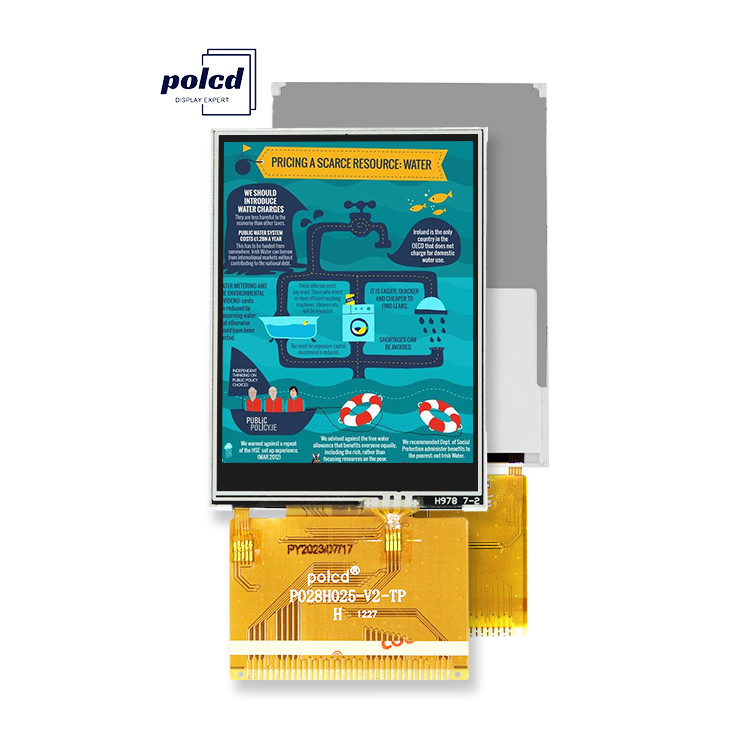

2.8 Inch Full Viewing Angle Sunlight Readable IPS Panel 240*320 TFT LCD Touch Screen Dsplay Module for commercial and industrial use. Our TFT LCD has a 2.8 inch diagonally. The resolution of our tft lcd is 240 * 320. The resolution of our tft lcd is 240 * 320. The normal brightness is 300 nits under the test of laboratory. The Interface of this LCD is 8080 MCU 16bit. We can also customize other types of interfaces and FPCs for you. The ILI9341V driver IC provides on-chip storage and power system. If your products need to work under a temperature from -20°C to 70°C, then it can meet your needs.
| P/N | P028H025-V2 |
| Size(inch) | 2.8 |
| Resolution | 240*320 |
| Active Area(mm) | 43.20*57.60 |
| Pixel pitch(um) | 60*180 |

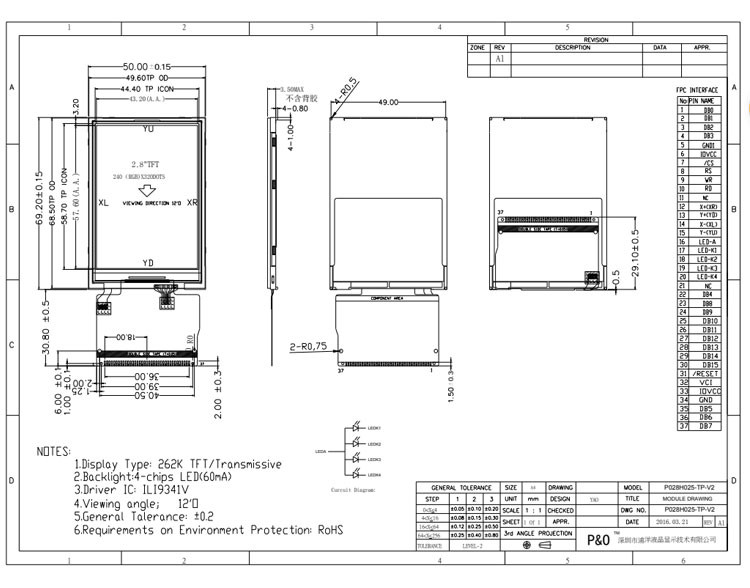

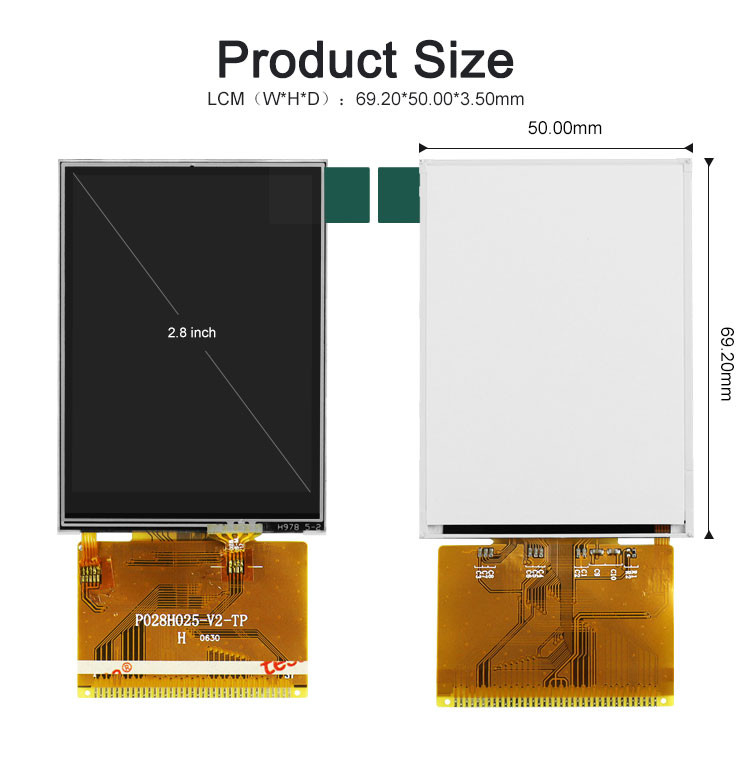

| Outline Dimension(mm) | 50.00*69.20*2.30 |
| Pixel arrangement | RGB Vertical Stripe |
| Display Mode | Normally Black |

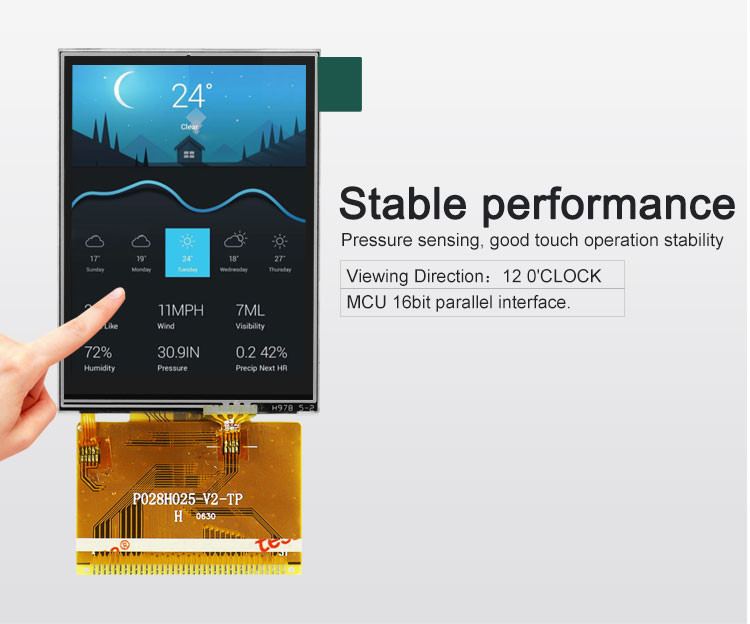

| Viewing Angle | 12 0'CLOCK |
| Display colors | 262K |
| Brightness (cd/m²) | 300 |
| Contrast Ratio | 600:1 |
| Interface | 8080 MCU 16bit |

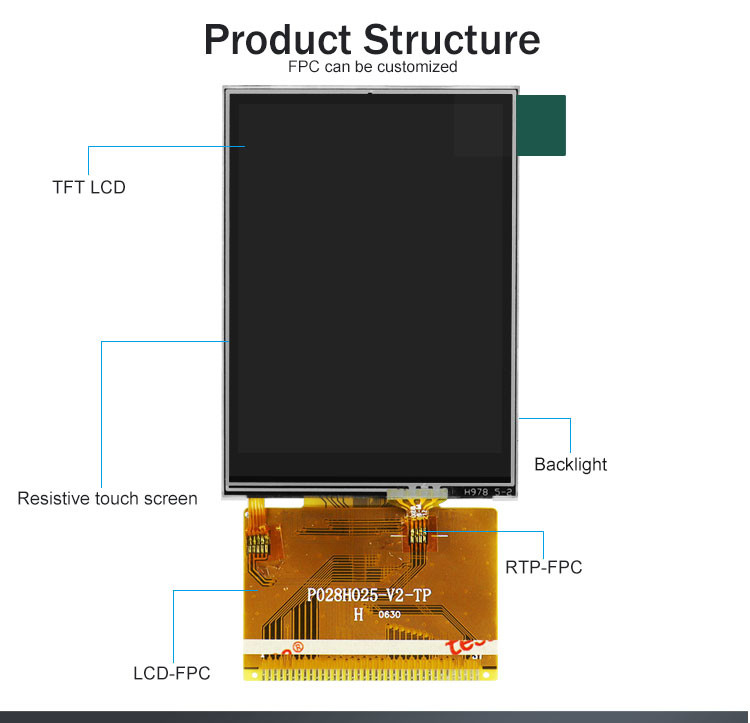

| Back-light | LED Side-light type |
| Response time(ms) | 35 |
| Pin Number | 37 |
| Hot selling P/N | Size (inch) | Resolution | Interface |
| N096-1608TBBIG11-H13 | 0.96 | 80*160 | 4 Line SPI |
| P114H002 | 1.14 | 135*240 | 4 Wire SPI |
| N133-2424TCBIG01-H12 | 1.33 | 240*240 | 4 Wire SPI |
| P169H002-CTP | 1.69 | 240*240 | 4 Line SPI |
| P177C011 | 1.77 | 800*480 | RGB 24bit |
| P020H017-IPS | 2 | 240*320 | MCU 8BIT |
| HINK-E0213A189-A0 | 2.13 | 122*250 | 3 Line SPI 4 Line SPI |
| P022H002 | 2.2 | 240*320 | 4 Line SPI |
| P023H005-V2 | 2.31 | 320*240 | 8080 MCU 16bit |
| EO-DIS-TFT24V03 | 2.4 | 240*320 | 8080 MCU 8bits |
| P027-40-V2 | 2.7 | 960*240 | RGB 8bit |
| P028H042 | 2.8 | 240*320 | MCU 8/16bit SPI3/4-wire |
| P032010A | 3.2 | 320*820 | SPI+16BIT RGB |
| P035C013-CTP | 3.5 | 320*480 | 8080 MCU 16bit |
| P035M048-IPS | 3.5 | 320*480 | 18BIT RG |
| P043B018 | 4.3 | 800*480 | RGB 24bit |
| P050B028-IPS-CTP | 5 | 800*480 | RGB 24bit |
| P055H018-IPS-V3 | 5.5 | 720*1280 | MIPI |
| P070C012 | 7 | 800*480 | RGB 24bit |
| T10150UX-V01 | 10.1 | 1024*600 | RGB 24bit |
FAQ
Q: Can we customize product? What cost will be included?
A: The product can be customized. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.
Q: I want make sure some information before order, where should I find the files or datasheet?
A: The easiest way is contact our sales then we will provide any files if you need quickly.
Q: How you ship the goods?
A: Usually we will ship the sample by fast delivery. No matter how we will take the best shipping method you agree with. Shipping cost should pay by your side, please kindly know.
Q: How to control the quality of products?
A: Our company has a professional quality team, and all products are 100% inspected prior to ship.
Q: Where are your customers from?
A: To protect our customers private information, we can not list them and show. However we can tell you our customers are from Europe, America, Asia and Middle East. We have many long term customers all over the world. The most possbile reason is the good quality and nice price.
