Place of Origin:
Shenzhen, China
Brand Name:
Polcd
Certification:
RoHS, ISO9001
Model Number:
P027-40-V2
Contact Us
This TFT LCD Module is a color-active matrix thin-film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. If your product requires a size 2.7 inch then our lcd is just what you need. Improve your product design by adding our 960 * 240 resolution product. QC department measured the luminance is 280 nits under normal operating.
| P/N | P027-40-V2 |
| Size(inch) | 2.7 |
| Resolution | 960*240 |
| Active Area(mm) | 40.50*54.00 |
| Pixel pitch(um) | 56.25*168.75 |

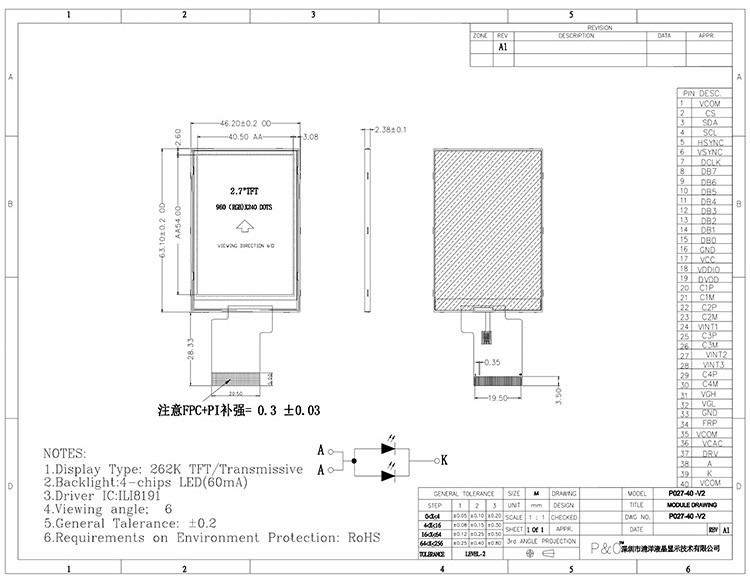

| Outline Dimension(mm) | 46.20*63.10*2.38 |
| Pixel arrangement | RGB Vertical Stripe |
| Display Mode | Normally White |
| Viewing Angle | 6 0'CLOCK |
| Display colors | 262K |
| Brightness (cd/m²) | 280 |
| Contrast Ratio | 600:1 |
| Interface | RGB 8bit |
| Back-light | LED Side-light type |
| Driver Ic | ILI8191 |
| Operation Temperature(°C) | -20~70 |
| Storage Temperature(°C) | -30~80 |
| Response time(ms) | 35 |
| Pin Number | 40 |
This type of RGB 8bit can be suitable for a variety of scenarios. From the datasheet we can know the driver of the LCD is is ILI8191. THE lowest operating temperature can reach -20°C (-4°F) and highest is 70°C (158°F).
Q: Is there a Touch Panel (Touch Screen) on the display?
A: We can offer you the RTP (Resistive Touch Panel) and CTP (Capacitive Touch Panel) if you need.
Q: Can I pay the order with credit cards or PayPal?
A: We accept PayPal and credit card for sample, T/T paid for mass order. We also accept advanced percentage (usually 30% before producing) for large orders.
Q: How you ship the goods?
A: Usually we will ship the sample by fast delivery. No matter how we will take the best shipping method you agree with. Shipping cost should pay by your side, please kindly know.
Q: What if the goods get lost/ damaged on the way?
A: We strongly suggest to buy insurance in case of any problem. We will discuss these details with you before order.
